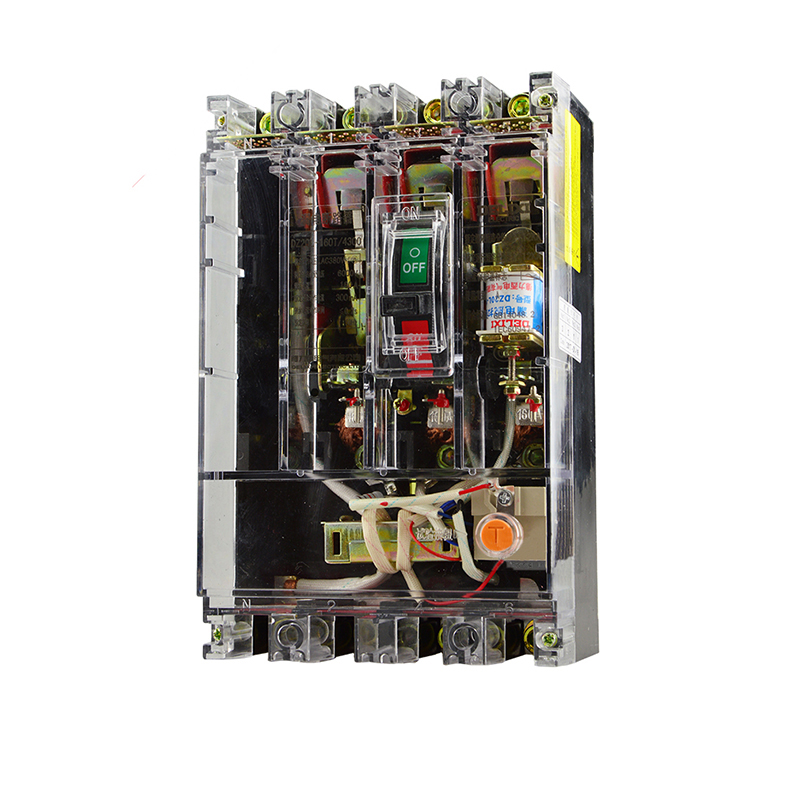

DZ15-100/2901 100A 6*16 screws replaced with hexagon socket molded case circuit breaker
Brand:
Series:
DZ15
Protection Type:
Power distribution protection
How It Works:
Manual
Frame Current:
100A
Tripping Mode:
Electromagnetic
Protection Function:
LI
Wiring Method:
Front panel wiring
Poles:
2P
Rated Voltage:
220/380VAC
Installation:
Fixed
Trip Unit:
Hydraulic electromagnetic release
Rated Current of Release:
100A
Breaking Capacity:
5KA
Model:
DZ15-100/2901 100A 6*16 screws replaced with hexagon socket
Order Number:
01040030053
Description:
TENGEN molded case circuit breaker DZ15-100/2901 100A 6*16 screws replaced with hexagon socket, LI, power distribution protection, 5KA, 100A, fixed, manual, 2P
Product parameters
| Product attributes | Attribute value | Filter product attributes |
|---|---|---|
| Brand： | TENGEN | |
| Series： | DZ15 | |
| Appendix： | - | |
| Protection Type： | Power distribution protection | |
| How It Works： | Manual | |
| Frame Current： | 100A | |
| Tripping Mode： | Electromagnetic | |
| Protection Function： | LI | |
| Wiring Method： | Front panel wiring | |
| Poles： | 2P | |
| Rated Voltage： | 220/380VAC | |
| Installation： | Fixed | |
| Trip Unit： | Hydraulic electromagnetic release | |
| Rated Current of Release： | 100A | |
| Breaking Capacity： | 5KA |
Products with the same attribute : 0
Show details
Series Overview
Outline of I Series
- DZ15 series Molded Case Circuit Breakers (hereinafter referred to as circuit breakers) are suitable for circuits with AC 50Hz, rated voltage of 220V or 380V, and rated current up to 100A. They are used for overload and short-circuit protection in distribution systems and for motors, and can also be used for infrequent circuit switching and infrequent motor starting. The derived transparent case type circuit breaker in this series features a cover made of new, high-temperature resistant, high-strength polycarbonate material, allowing visual confirmation of contact status. It is widely used in temporary power supply locations such as construction sites.
- Complies with Standard: GB14048.2
Normal Service and Mounting Conditions
- The altitude of the installation site does not exceed 2000m.
- Ambient Air Temperature:
- Upper limit of ambient air temperature does not exceed +40°C, lower limit is not lower than -5°C.
- The average value of ambient air temperature over any 24-hour period does not exceed +35°C.
- Atmospheric Conditions:
- Relative humidity of the atmosphere does not exceed 50% at the maximum surrounding temperature of +40°C. Higher relative humidity is permissible at lower temperatures.
- The monthly average of the daily maximum relative humidity for the wettest month is 90%. The monthly average of the daily minimum temperature for that same month is +25°C, with consideration given to condensation occurring on the product surface due to temperature changes.
- Installation Category: III.
- Mounting Conditions:
- Install in locations free from impact, vibration, rain, and snow ingress.
- The upper terminal shall be connected to the power supply side. The lower terminal shall be connected to the load side.
- The inclination relative to the vertical plane shall not exceed 5°.
- Pollution Degree: Level 3.
