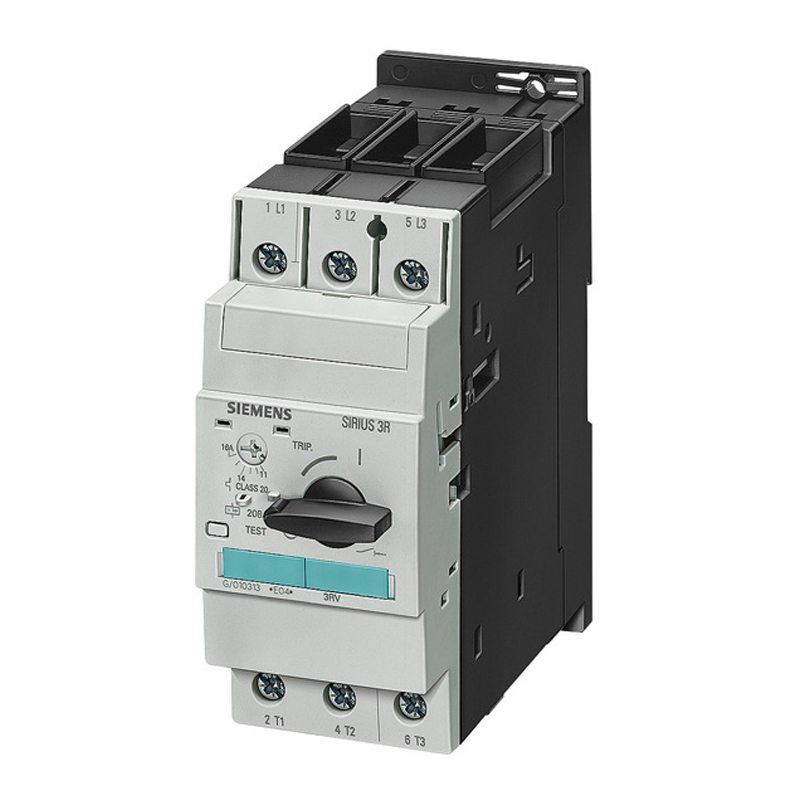

Siemens 3RV6411-0KA10 0.9-1.25A 26A Motor Protection Circuit
Brand:
Series:
3RV6
Application:
Transformer protection
Control Type:
Knob control
Setting Current Range:
0.9-1.25A
Rated Power:
-
Auxiliary Contacts:
-
Wiring Method:
Screw terminals
Poles:
3P
Rated Voltage:
400VAC
Breaking Capacity:
100KA
Model:
3RV6411-0KA10 0.9-1.25A 26A
Order Number:
3RV64110KA10
Description:
Siemens 3RV6411-0KA10 0.9-1.25A 26A, breaking capacity 100KA, knob control, transformer protection, 400VAC, screw terminal, pole number 3P
Product parameters
| Product attributes | Attribute value | Filter product attributes |
|---|---|---|
| Brand： | Siemens | |
| Series： | 3RV6 | |
| Application： | Transformer protection | |
| Control Type： | Knob control | |
| Setting Current Range： | 0.9-1.25A | |
| Rated Power： | - | |
| Auxiliary Contacts： | - | |
| Wiring Method： | Screw terminals | |
| Poles： | 3P | |
| Rated Voltage： | 400VAC | |
| Breaking Capacity： | 100KA |
Products with the same attribute : 0
Show details
Series Overview
Series Overview
- 3RV6/3RV5 circuit breakers are compact - type motor starting protection circuit breakers. They can be used for the switching on/off and protection of three - phase induction motors (with a maximum power of 45kW at an AC voltage of 400V) and other loads (with a maximum rated current of up to 100A).
Applications
Operating Conditions
- 3RV6/3RV5 circuit breakers are suitable for any climate and are applied in the normal operating environment of enclosed spaces (such as dust - free, free of corrosive gases or harmful gases). When installed in dusty and humid places, appropriate protective covers need to be equipped.
- 3RV6/3RV5 circuit breakers can have wires connected from the top or the bottom.
- For the ambient temperature allowed by the circuit breakers, the maximum breaking capacity, the tripping action current, and other conditions, refer to the specific technical data and tripping characteristic curves in this chapter.
- 3RV6/3RV5 circuit breakers can be used in IT systems (IT networks), but the different short - circuit breaking capacities in IT systems should be taken into account.
- Even for motors with the same rated power, due to the instantaneous peak current, their operating current, starting current, and current peak value are all different. Therefore, the rated value of the motor in the selection table can only represent guide data. The actual rated data and starting data of the motor are very important for selecting a suitable circuit breaker. This principle also applies to circuit breakers for transformer protection.
Application Categories
- Motor protection
- System protection
- Starter combination short - circuit protection
- Transformer protection
- As main switches and emergency stop switches
- DC circuits
