Siemens spare part 3RV2011-1HA10-0BA0

Name: Siemens spare part 3RV2011-1HA10-0BA0
SKU: 3RV2011-1HA10-0BA0

Brand:

Siemens

Delivery Time:

Delivery time is estimated at 3-5 weeks (for reference only, please consult customer service for details).

Inventory Types:

futures

Model:

3RV2011-1HA10-0BA0

Order Number:

3RV2011-1HA10-0BA0

Description:

Special type circuit breaker, structural size S00, used for motor protection, rating 10 A, trip unit 5.5 - 8 AN, trip unit 104 A, bolt-type terminal connection, standard breaking capacity, ambient temperature -50 °C, 500 operating cycles.

WhatsApp Inquire Now

Product parameters
Product Overview
About us
File

Product parameters

Product attributes	Attribute value	Filter product attributes
Brand：	Siemens
Delivery Time：	Delivery time is estimated at 3-5 weeks (for reference only, please consult customer service for details).
Inventory Types：	futures
Life Cycle：	/
ECCN：	N
AL：	N

Products with the same attribute : 0

Show details

Product Overview

SIEMENS SIRIUS 3RV2

Motor Starter Protector / Circuit Breaker

Product Overview

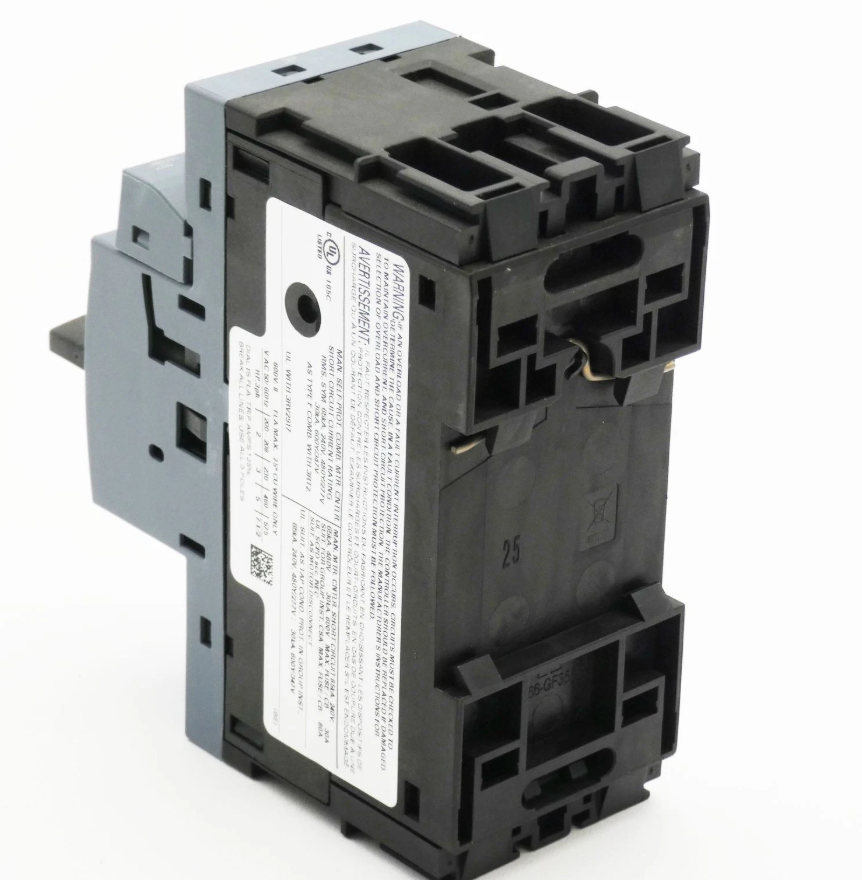

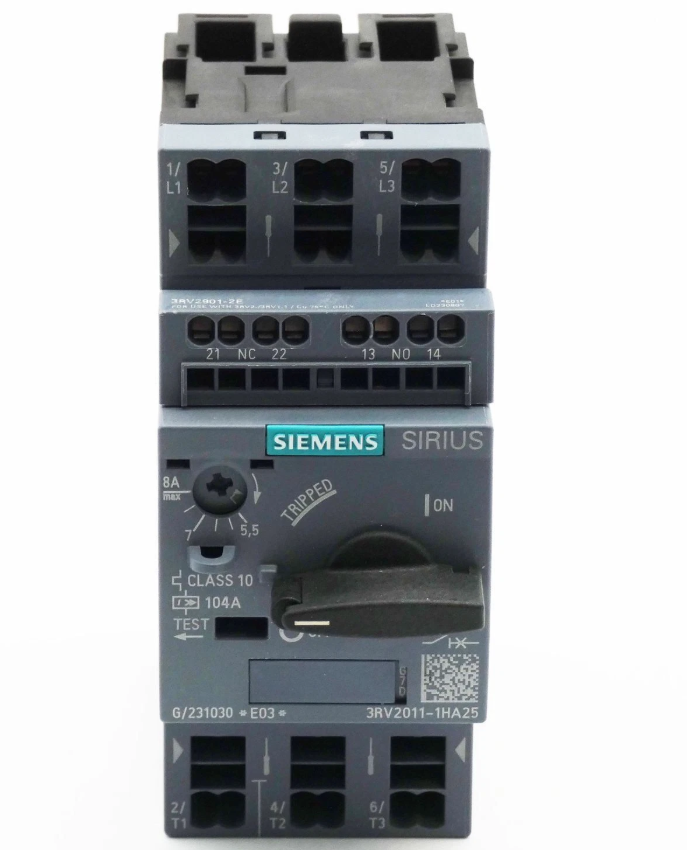

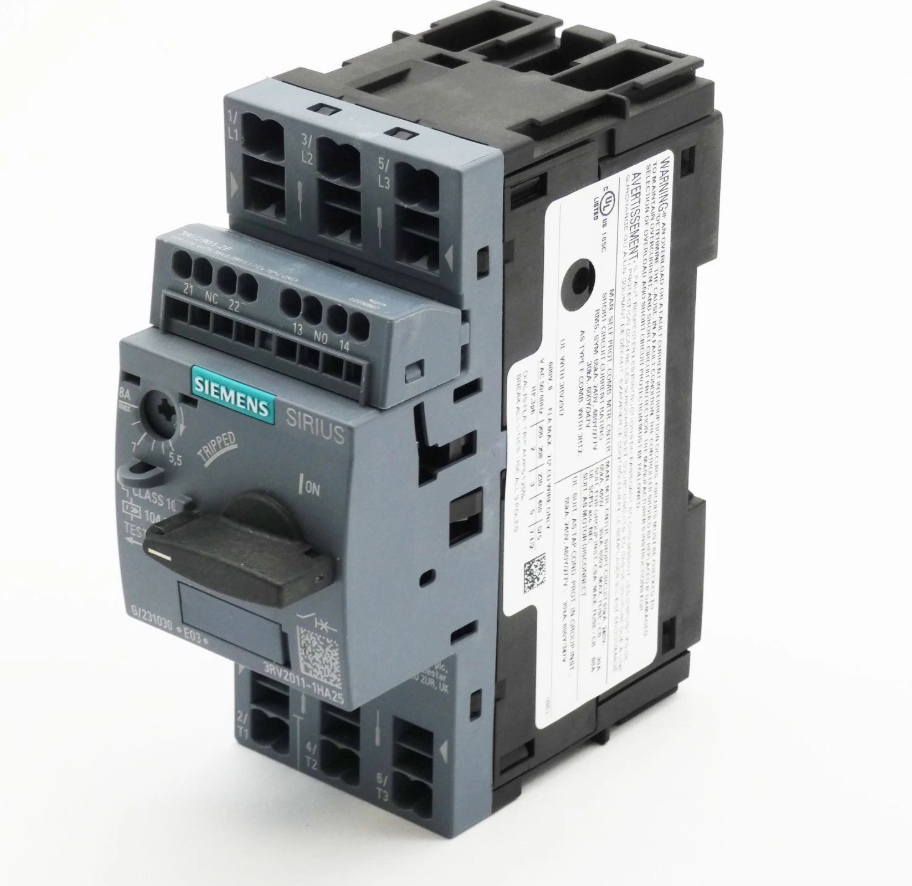

The Siemens SIRIUS 3RV2011-1HA10 is a compact motor starter protector from the SIRIUS 3RV2 family. It is designed for the protection of motors and motor feeders against overload and short-circuit conditions and combines thermal and magnetic protection in a compact circuit-breaker format.

This model is Size S00, with a 5.5–8.0 A adjustable overload release, a 104 A instantaneous short-circuit release, Class 10 tripping characteristics, screw terminals, and standard switching capacity. Siemens currently lists the product as an active PM300 product.

Key Features

Motor Protection
Provides thermal overload protection for motors with an adjustable current setting of 5.5 to 8.0 A.

Short-Circuit Protection
The magnetic instantaneous trip is rated at 104 A, providing rapid interruption under severe short-circuit conditions.

Class 10 Protection
The CLASS 10 characteristic is intended for conventional motor-starting applications where the motor can reach normal operating speed within a relatively short starting period.

Compact S00 Design
The S00 frame size provides a space-efficient solution for motor control panels and starter assemblies.

DIN Rail Installation
The device can be mounted by screw or snap-on mounting onto a 35 mm standard mounting rail in accordance with DIN EN 60715.

Screw Connection
The main circuit uses screw-type terminals, providing a conventional and robust electrical connection.

Technical Specifications

Parameter	Specification
Manufacturer	Siemens
Product Family	SIRIUS 3RV2
Product Type	Motor starter protector / circuit breaker
Article Number	3RV2011-1HA10
Frame Size	S00
Protection Class / Trip Class	CLASS 10
Overload Release Range	5.5–8.0 A
Short-Circuit Release	104 A
Short-Circuit Trip Principle	Magnetic
Connection Type	Screw terminals
Mounting	35 mm DIN rail / screw mounting
Standard Switching Capacity	Yes
Height	97 mm
Width	45 mm
Depth	97 mm
Net Weight	Approx. 0.3485 kg
Country of Origin	Germany
Product Lifecycle	PM300 – Active Product
EAN	4011209712485
Commodity Code	85362010

Dimensions and product data are taken from Siemens documentation and the current Siemens Industry Mall entry.
