Siemens spare part 3RV2021-4DA10-0BA0

Name: Siemens spare part 3RV2021-4DA10-0BA0
SKU: 3RV2021-4DA10-0BA0

Brand:

Siemens

Delivery Time:

Delivery time is estimated at 3-5 weeks (for reference only, please consult customer service for details).

Inventory Types:

futures

Model:

3RV2021-4DA10-0BA0

Order Number:

3RV2021-4DA10-0BA0

Description:

Special type circuit breaker, structural size S0, used for motor protection, class 10 A, trip unit 18-25 AN, trip unit 325 A, bolt-type terminal connection, standard breaking capacity, ambient temperature -50 °C, 500 operating cycles.

WhatsApp Inquire Now

Product parameters
Product Overview
About us
File

Product parameters

Product attributes	Attribute value	Filter product attributes
Brand：	Siemens
Delivery Time：	Delivery time is estimated at 3-5 weeks (for reference only, please consult customer service for details).
Inventory Types：	futures
Life Cycle：	/
ECCN：	N
AL：	N

Products with the same attribute : 0

Show details

Product Overview

SIEMENS SIRIUS 3RV2

Motor Starter Protector

Product Overview

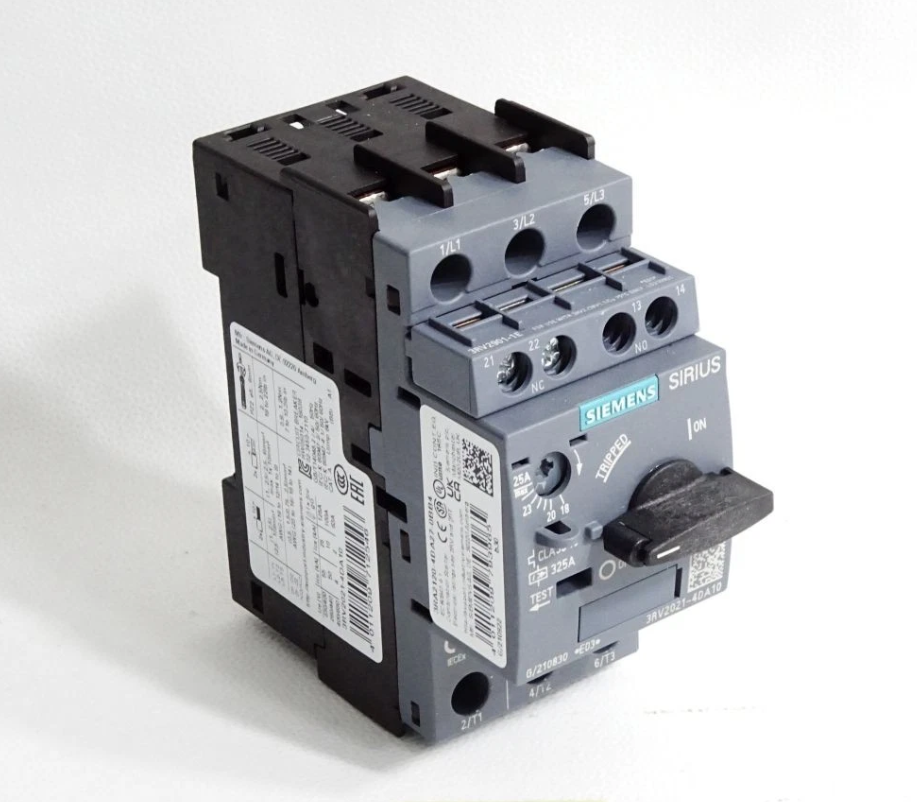

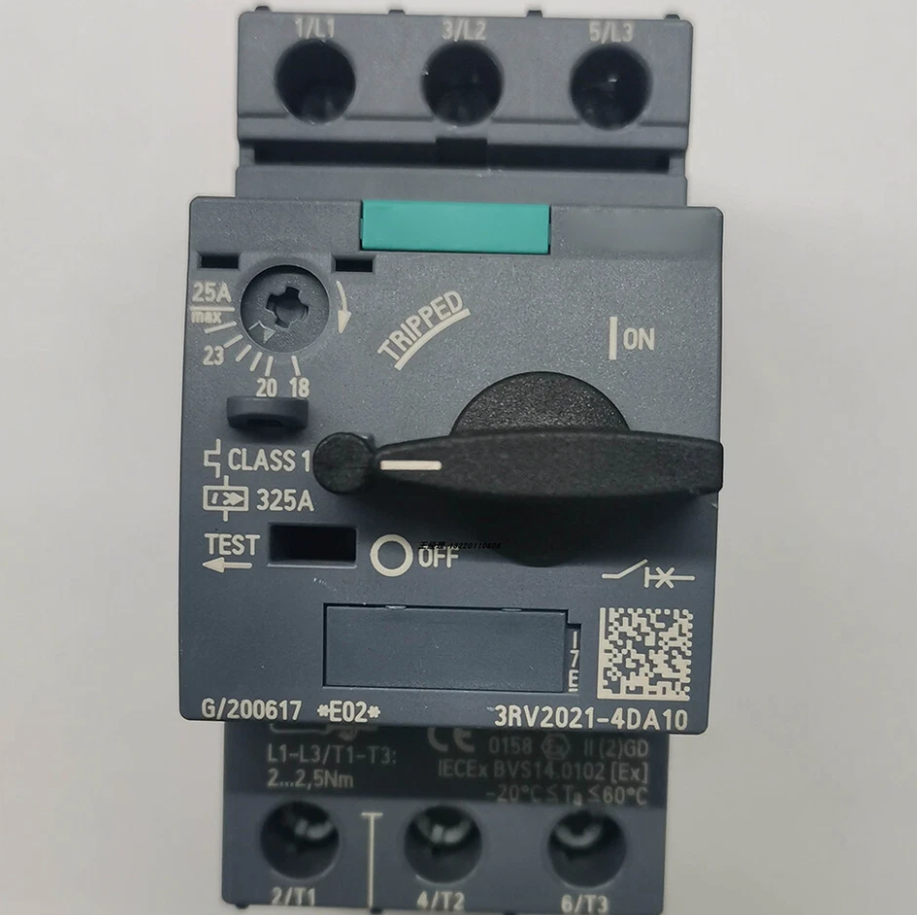

The Siemens SIRIUS 3RV2021-4DA10 is a compact motor-protection circuit breaker from the SIRIUS 3RV2 family. Designed in frame size S0, it provides reliable protection for three-phase motor circuits against overload and short-circuit conditions.

This model features an adjustable overload release range of 18–25 A, a 325 A instantaneous short-circuit release, CLASS 10 tripping characteristics, and screw terminals with standard switching capacity. Siemens currently lists the article as an active PM300 product.

Key Features

Motor Protection
The integrated thermal overload protection can be adjusted from 18 A to 25 A, allowing the device to be matched to the rated operating current of the protected motor.

Short-Circuit Protection
The instantaneous magnetic short-circuit release operates at 325 A, providing rapid interruption of high fault currents.

CLASS 10 Tripping Characteristic
The CLASS 10 characteristic is intended for conventional motor-starting applications and provides an appropriate balance between motor starting capability and thermal protection.

Compact S0 Housing
The S0 frame size provides a compact solution for motor control panels, starter combinations, and machine-building applications.

Three-Pole Main Circuit
The device has a 3-pole main current circuit, making it suitable for standard three-phase motor protection.

Reliable Screw Connection
The main circuit uses screw terminals for secure and conventional industrial wiring.

Technical Specifications

Parameter	Specification
Manufacturer	Siemens
Product Family	SIRIUS 3RV2
Product Type	Motor Starter Protector / Circuit Breaker
Article Number	3RV2021-4DA10
Frame Size	S0
Trip Class	CLASS 10
Adjustable Overload Release	18–25 A
Short-Circuit Release	325 A
Main Circuit	3-pole
Rated Insulation Voltage	690 V AC
Maximum Operating Voltage	690 V AC
Connection Type	Screw terminals
Protection Degree, Front	IP20
Impulse Voltage Resistance	6 kV
Operating Temperature	−20 to +60 °C
Storage Temperature	−50 to +80 °C
Maximum Installation Altitude	2,000 m
Net Weight	Approx. 0.370 kg
Product Lifecycle	PM300 – Active Product
Country of Origin	Germany
EAN	4011209712546

These specifications are based on Siemens' current product information and technical data sheet.

About us

File

3RV2021-4DA10_SIRIUS_Technical_Datasheet.pdf
