Phoenix MSTBA 2,5/6-G-5,08 PCB Terminal
Brand:
Series:
COMBICON
Color:
green
Material:
PA
Conductor Cross-Sectional Area:
-
Flame Retardant Grade:
V0
Connection:
-
Rated Current:
12A
Product Type:
Single layer socket
Rated Voltage:
320V
Model:
MSTBA 2,5/6-G-5,08
Order Number:
1757284
Description:
Phoenix terminal MSTBA 2,5/6-G-5,08 (1757284), green, 320V, single-layer socket, 12A, flame retardant grade V0, PA
Product parameters
| Product attributes | Attribute value | Filter product attributes |
|---|---|---|
| Brand： | Phoenix | |
| Series： | COMBICON | |
| Color： | green | |
| Material： | PA | |
| Conductor Cross-Sectional Area： | - | |
| Flame Retardant Grade： | V0 | |
| Connection： | - | |
| Rated Current： | 12A | |
| Product Type： | Single layer socket | |
| Rated Voltage： | 320V |
Products with the same attribute : 0
Show details
Series Overview
Series Overview
Fixed Connectors
High-performance fixed connectors can connect wires with cross-sections from 0.2 to 35 mm². Screw connection or spring connection can be used, so there is no need for complex and expensive auxiliary installations with ring terminals, DIN rails or combined terminal blocks.

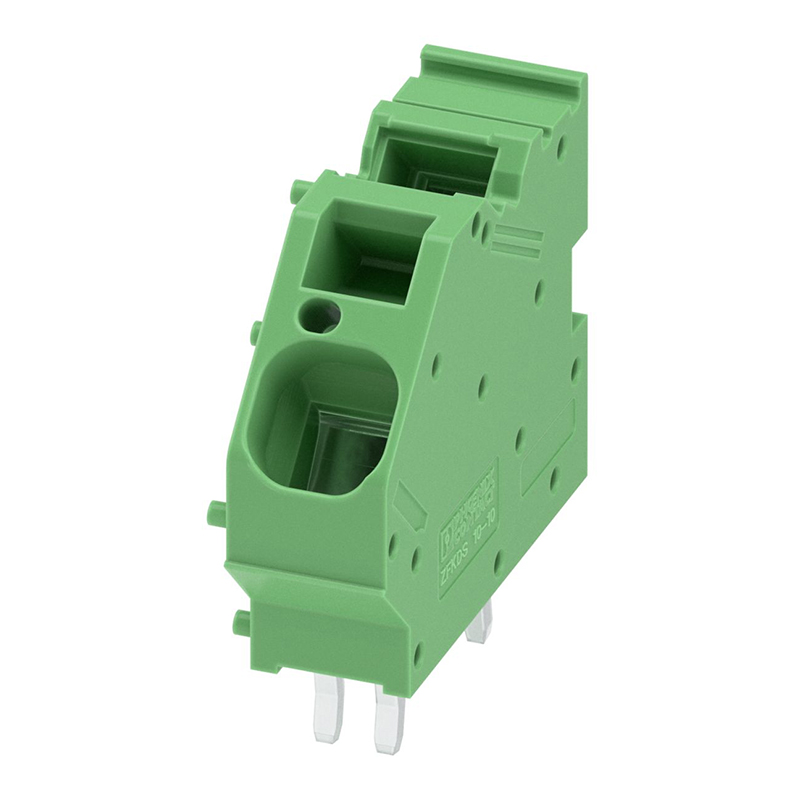

The fixed connector with screw connection, MKDS P 25, is designed for current applications up to 125 A, with a working voltage of up to 600 V or 1000 V (UL certification upper limit), and complies with IEC/DIN VDE standards. Using wave soldering technology, it can be quickly and firmly connected to the PCB.

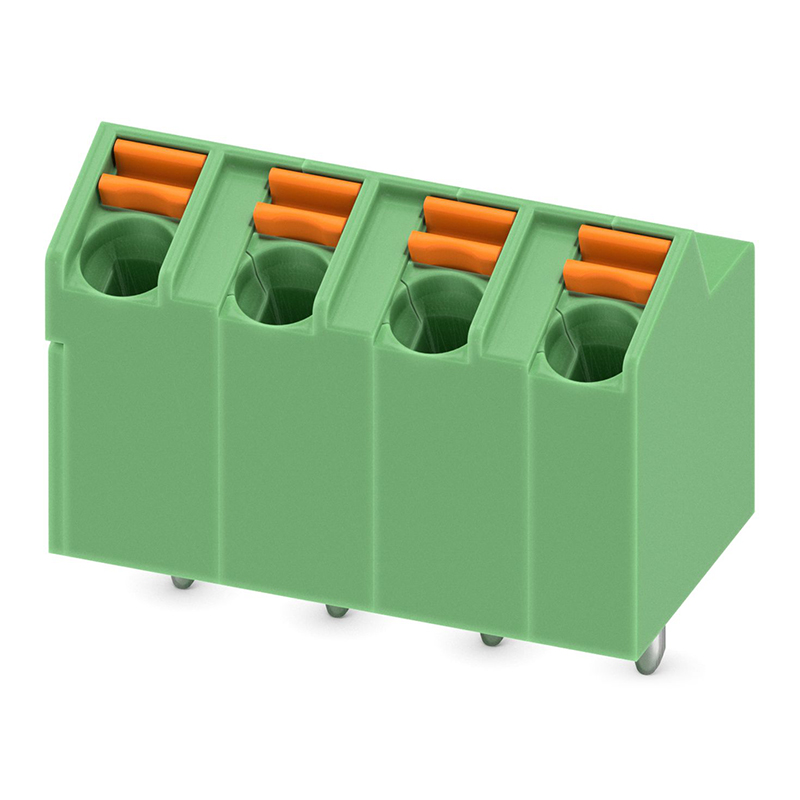

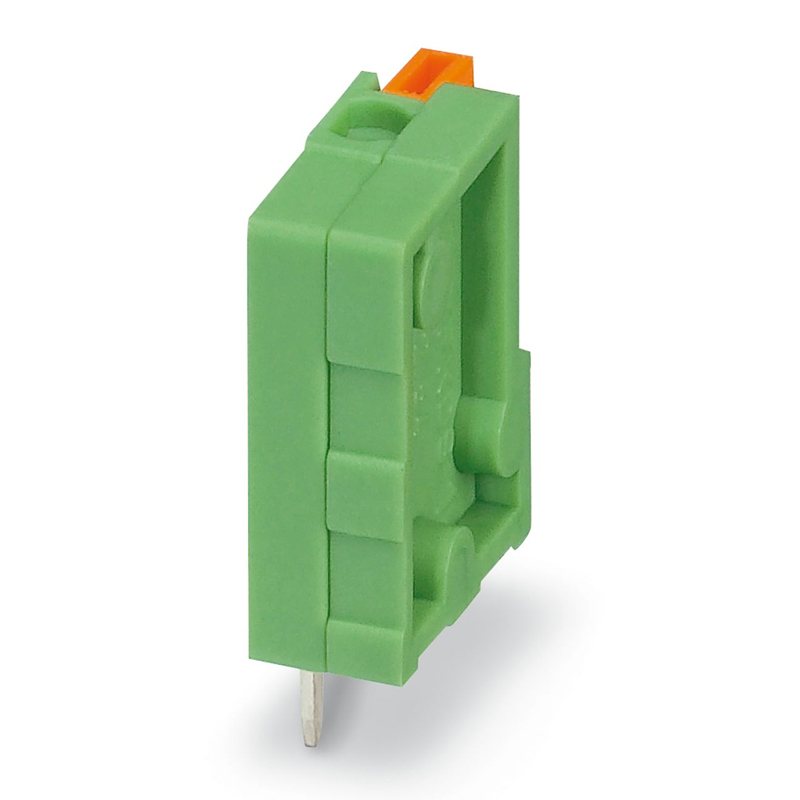

Using the SPT (Spring Print Terminal) series with plug - in spring connection, PCB terminal blocks can be wired quickly and conveniently. Through this connection technology, flexible wires with cold - pressed terminals or rigid wires can be directly inserted into the terminal block without tools.
Can the fixed connector carry a current of 125 A? No problem!
High - performance fixed connectors have a current - carrying capacity of up to 125 A and can be used with high - current PCBs.
A variety of PCB production technologies can provide more choices for equipment connection. Integrating necessary functions and modules on one PCB saves the expensive equipment wiring.
Horizontal wiring direction, pitch 6.35/7.62/9.52 mm
- Fixed connectors with screw connection, the terminal capacity is 6 mm²
- 2 - position and 3 - position connectors can be combined into high - potential connectors after splicing
- Provide different pitches to meet different voltage requirements (6.35 mm / 7.62 mm / 9.52 mm)
- Connector with fixing claw (MKDSV, recommended for 2 - position connection)

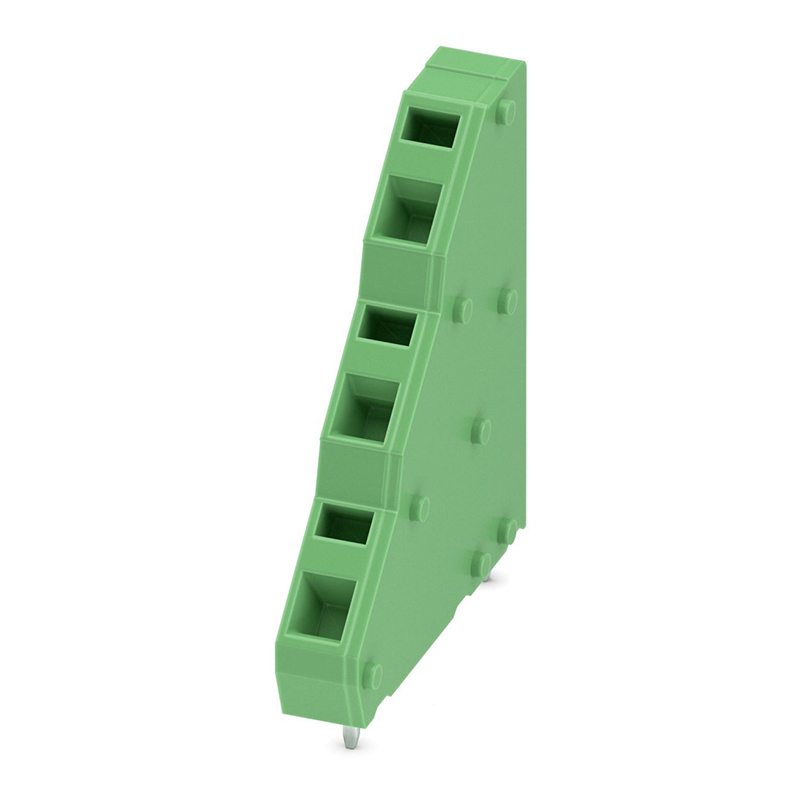

Double-layer design, pitch 6.35/9.52 mm
- The fixed connector with screw connection for double - layer wiring has a terminal capacity of up to 6 mm²
- Provide different pitches to meet different voltage requirements (6.35 mm / 9.52 mm)
- 2 - position and 8 - position connectors can be combined into high - potential connectors after splicing
- Staggered layers for easy wiring
