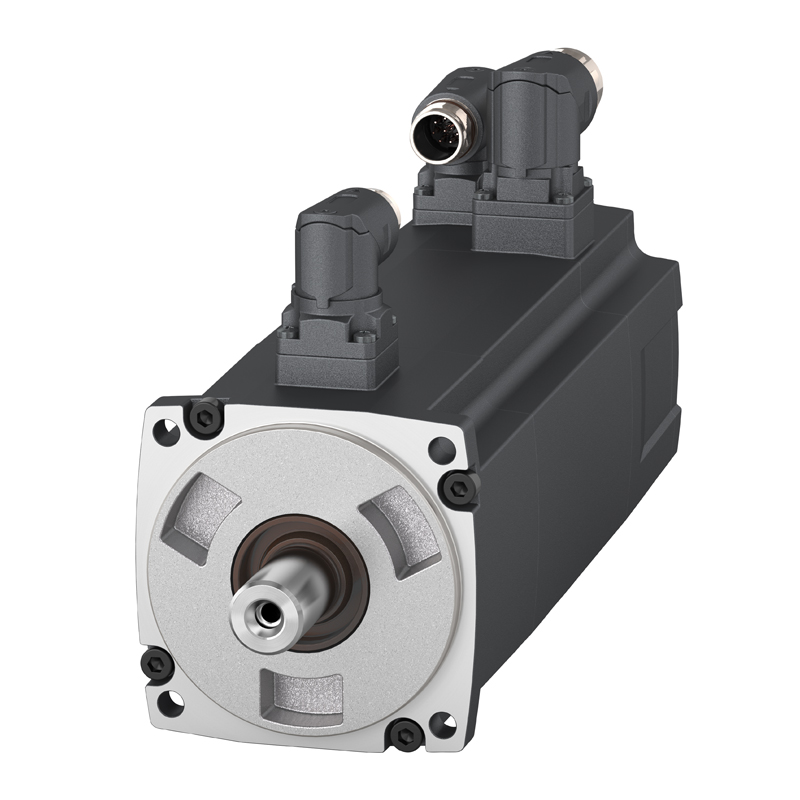

Siemens 1FL2102-2AG11-1SC0 Servo Motor

Name: Siemens 1FL2102-2AG11-1SC0 Servo Motor
SKU: 1FL21022AG111SC0

Brand:

Siemens

Flange Size:

40.6mm

Encoder Type:

Absolute encoder 21 bits

Axis Type:

Keyed shaft

Rated Speed:

3000rpm

Inertia Type:

Low inertia

Rated Torque:

0.16Nm

Holding Brake:

have

Protection Level:

IP65

Voltage Level:

Single phase/three phase 200-240VAC

Rated Power:

0.05KW

Rated Current:

0.81A

Model:

1FL2102-2AG11-1SC0

Order Number:

1FL21022AG111SC0

Description:

Siemens servo motor 1FL2102-2AG11-1SC0, brake yes, IP65, rated torque 0.16Nm, low inertia, 3000rpm, 0.81A, keyed shaft, absolute encoder 21 bits

WhatsApp Inquire Now

Product parameters
Series Overview

Product parameters

Product attributes	Attribute value	Filter product attributes
Brand：	Siemens
Flange Size：	40.6mm
Encoder Type：	Absolute encoder 21 bits
Axis Type：	Keyed shaft
Rated Speed：	3000rpm
Inertia Type：	Low inertia
Rated Torque：	0.16Nm
Holding Brake：	have
Protection Level：	IP65
Voltage Level：	Single phase/three phase 200-240VAC
Rated Power：	0.05KW
Rated Current：	0.81A

Products with the same attribute : 0

Show details

Series Overview

Overview

The SIMOTICS S-1FL2 servo motor series is a compact, high-dynamic-response synchronous motor series, widely applicable to industrial environments. This series integrates advantages such as high power density, high protection class, and high overload capacity.
The 1FL2 servo motor is well-suited to address the main challenges in servo drive technology. The product range covers a certain number of specifications and options, being clear at a glance and easy to select. It is the core of the servo motor for the SINAMICS S200 servo drive system.
SIMOTICS S-1FL2 low-inertia motor: Low inertia, with the highest dynamic response performance, suitable for applications requiring small object movement and high dynamic response.
SIMOTICS S-1FL2 medium-inertia motor: Medium inertia, with accurate and stable control; suitable for applications involving medium-sized object movement.
SIMOTICS S-1FL2 high-inertia motor: Medium inertia, with accurate and stable control; suitable for applications involving large-sized object movement.

Advantages

When SIMOTICS S-1FL2 servo motors are combined with SINAMICS S200 drives, their advantages can be fully demonstrated:
- Short adjustment time and positioning time
- Rapid and accurate interference compensation
- High-dynamic-response and stable closed-loop control
These advantages stem from:
- Fast control cycle
- High pulse frequency
- Complex model algorithms
- High-resolution, fast-scanning photoelectric encoders
- Low inertia of the motor
- High overload capacity

Application Fields

Packaging machines
Gripping devices
Feeding and extraction equipment
Palletizing units
Automatic assembly equipment
Laboratory automation
Wood, glass, and ceramic industries
Digital printing machines
