Siemens spare part 1PH7167-7PF03-2KA3 drive product

Name: Siemens spare part 1PH7167-7PF03-2KA3 drive product
SKU: 1PH7167-7PF03-2KA3

Brand:

Siemens

Delivery Time:

The estimated delivery time is 22-24 weeks (for reference only, please consult customer service for details).

Model:

1PH7167-7PF03-2KA3

Order Number:

1PH7167-7PF03-2KA3

Description:

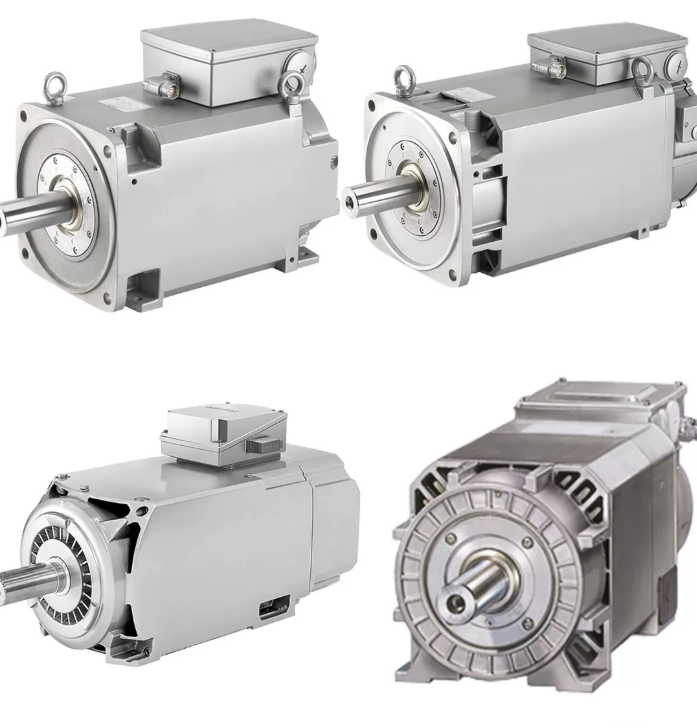

Spare parts: SIMOTICS M compact asynchronous motor 37kW, 1500 rpm, 235.5Nm; VC: 41kW, 1750rpm, 223.7Nm; 82A, VC: 79A, with brake; 400V three-phase AC, 50Hz, with fan; metric cable inlet conforming to EN 50262; motor encoder; rotary transformer; with Drive-CLiQ interface; junction box on the operating side; cable on the right side; construction form im B35 (im V15, im V36) including 230V; brake and microswitch; vibration strength rating A; shaft and flange accuracy N; key + half-key balanced ventilation direction: from drive side to operating side; IP55, fan IP54; standard plating (RAL 7016).

WhatsApp Inquire Now

Product parameters
Details
Product Overview
About Us
application scenarios

Product parameters

Product attributes	Attribute value	Filter product attributes
Brand：	Siemens
Delivery Time：	The estimated delivery time is 22-24 weeks (for reference only, please consult customer service for details).
Life Cycle：	/
ECCN：	N
AL：	N

Products with the same attribute : 0

Show details

Details

The order code 1PH7167-7PF03-2KA3 follows Siemens Machine-Readable Product Designation (MLFB) structure:

1PH7: Product family – SIMOTICS M compact forced-ventilated asynchronous spindle motor
167: Mechanical frame size / shaft height designation
7PF03: Power & electrical configuration – 37 kW rated power, 1500 rpm base speed, 400 V 3AC 50 Hz supply, forced ventilation cooling system
2KA3: Mechanical & feedback configuration
- Integrated electromagnetic holding brake
- 1 Vpp sin/cos incremental encoder (2048 pulses per revolution) with DRIVE-CLiQ interface, mounted on the non-drive end
- Top-mounted terminal box with right-side metric cable entry
- IM B35 mounting construction (foot + flange mounting), interchangeable with IM V15 / IM V36 mounting orientations
- Standard industrial paint finish in RAL 7016

Mechanical & Environmental Characteristics

Bearing System: Heavy-duty deep-groove ball bearings engineered for high radial load capacity, suitable for both direct-coupled and belt-driven spindle arrangements.
Vibration & Precision: Standard vibration severity grade R, with precision-machined shaft and flange faces to guarantee low runout and smooth operation.
Ambient Operating Range: Designed for operation in ambient temperatures from -15 °C to +40 °C; power derating applies for temperatures above 40 °C or installation at altitudes above 1000 m.
Mounting Flexibility: Supports multiple standard mounting positions (horizontal, vertical shaft-up, vertical shaft-down) without performance derating.

Product Overview

About Us

Availability & Delivery

√ Stock status: In Stock

√ Fast response within 12 hours

√ Worldwide shipping support

Stock and lead time depend on quantity.

Why Buy From ICX

√ Original Siemens spare parts

√ Experience in global spare parts supply

√ Support for discontinued models

√ Professional quotation for maintenance use

application scenarios

Below are some industry application scenarios：

Automotive Manufacturing Production Lines: Connect SINAMICS G120 drives to the PROFINET network to achieve real-time synchronized control of conveyors and lifting platforms.
Food & Beverage Packaging: Ensure precise cycle-time synchronization of filling lines via IRT (Isochronous Real-Time) mode in high-temperature and high-humidity environments.
Logistics & Warehousing: Integrate with AGV (Automated Guided Vehicle) drive systems to achieve multi-axis coordinated motion control.
Water Treatment Pumping Stations: Remotely monitor the operational status of variable frequency drives (VFDs).
