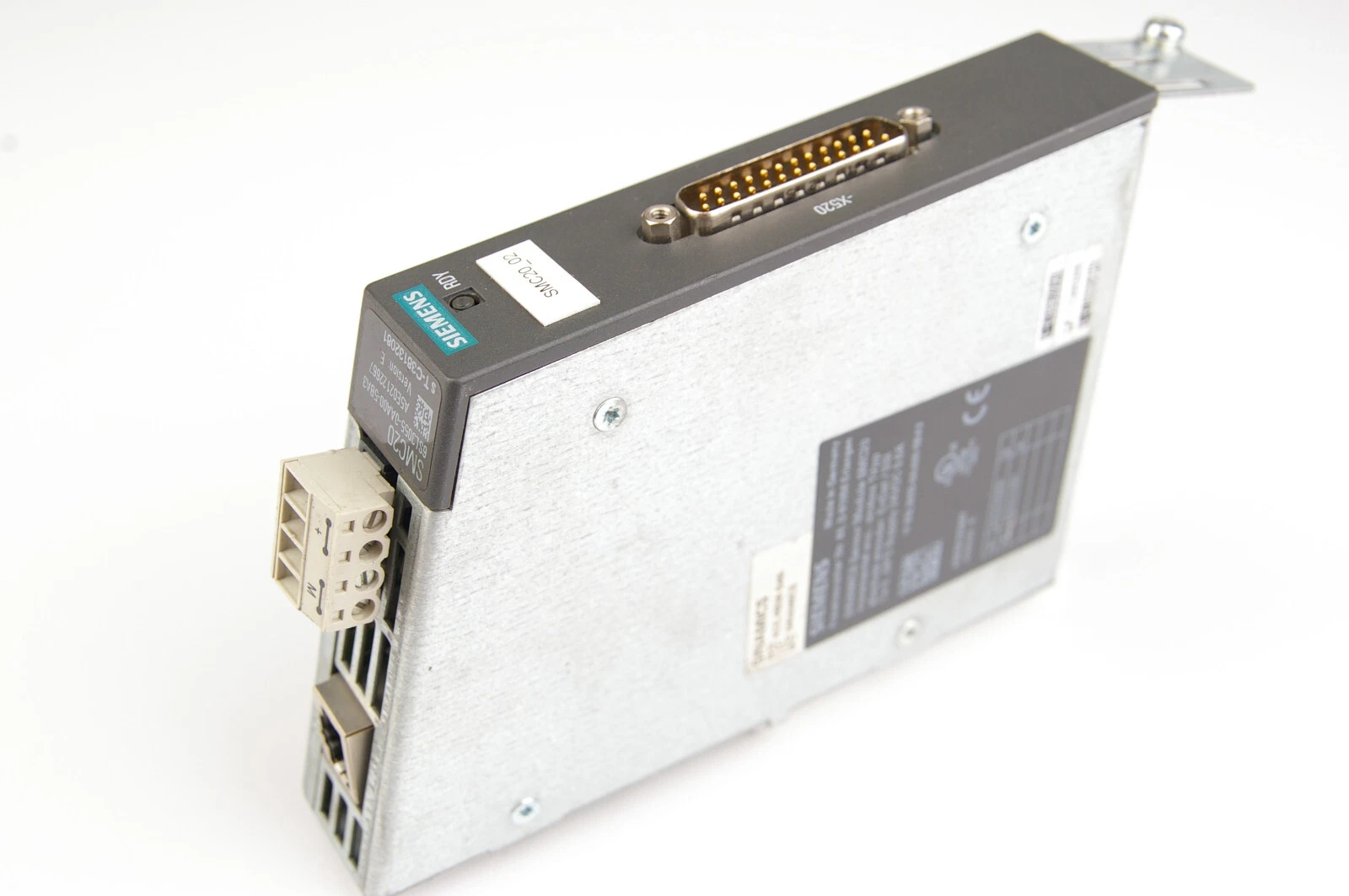

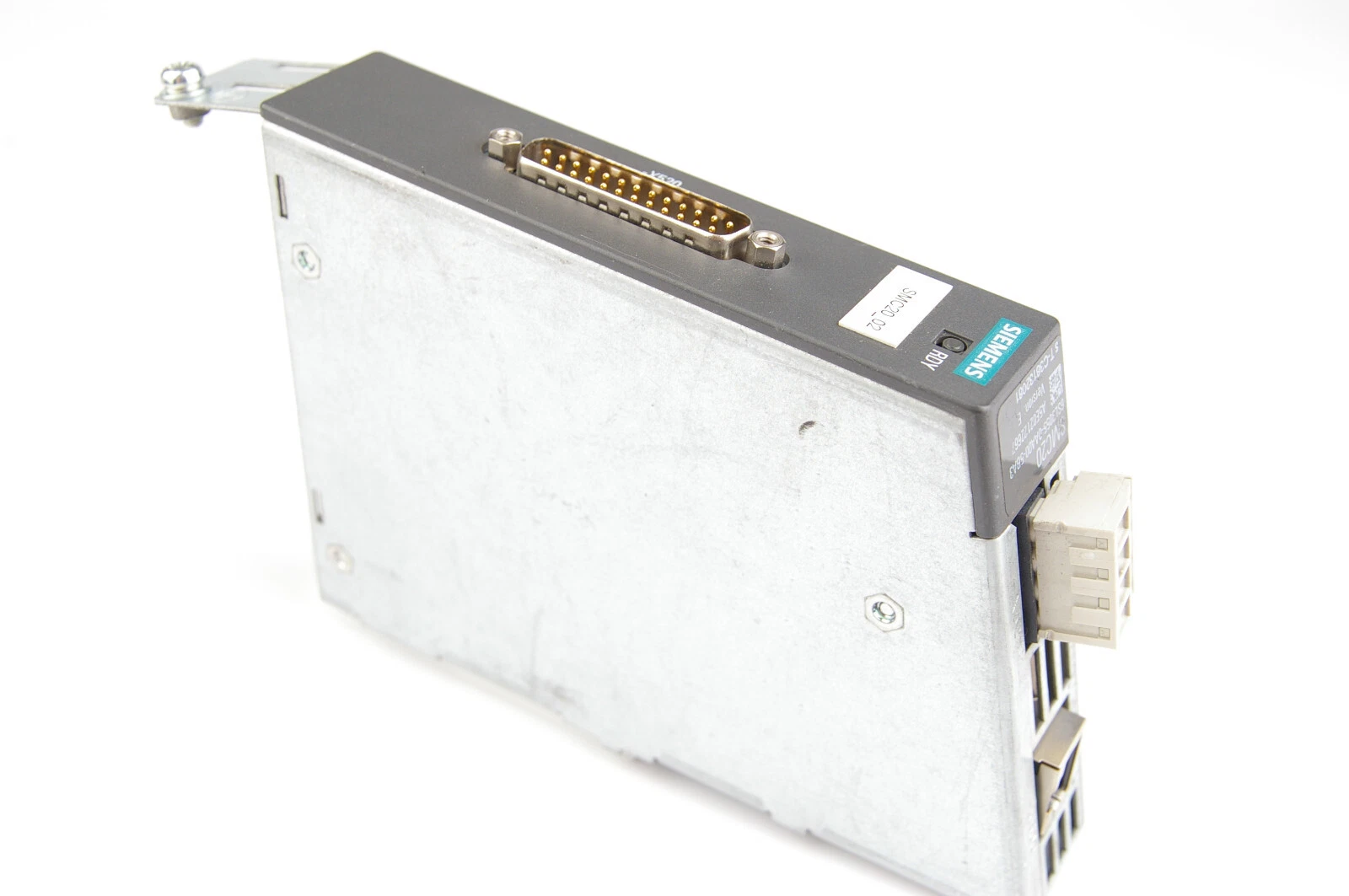

Siemens spare part 6SL3055-0AA00-5BA3 drive product

Name: Siemens spare part 6SL3055-0AA00-5BA3 drive product
SKU: 6SL3055-0AA00-5BA3

Brand:

Siemens

Country of Origin:

Germany

Delivery Time:

Estimated delivery time is 3 to 15 days (for reference only, please contact customer service for detailed information).

Degree of Protection:

IP20

Model:

6SL3055-0AA00-5BA3

Order Number:

6SL3055-0AA00-5BA3

Description:

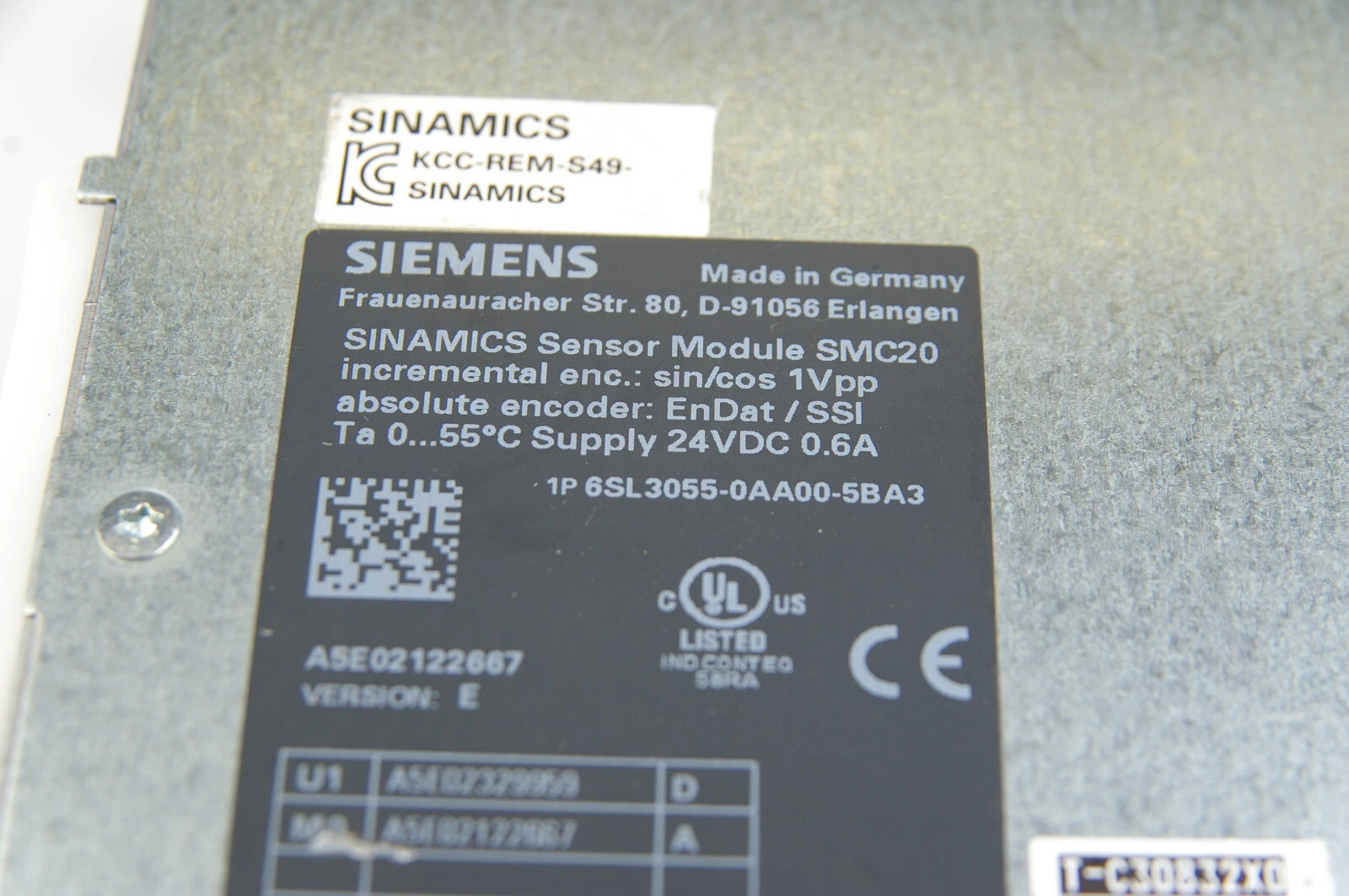

The SINAMICS S120 sensor module (SMC20 module) is used to analyze incremental encoders (SIN/COS 1VPP), absolute encoders (EnDat), and DRIVE-CLiQ without cable (30mm). The module has a structural width of [missing information].

WhatsApp Inquire Now

Product parameters
Product Overview
File
frequently asked questions

Product parameters

Product attributes	Attribute value	Filter product attributes
Brand：	Siemens
Country of Origin：	Germany
Certificate of suitability：	CE, RoHS, REACH
Max. operation：	55°C
Transport：	Industrial-grade packaging (anti-static, shockproof.)
Storage：	-25°C to 70°C
Operation：	0°C to 55°C
Display design：	No display (LED status only)
Net weight：	0.41 kg
Packaging dimensions(LxWxH)：	36 × 182 × 352 mm
Delivery Time：	Estimated delivery time is 3 to 15 days (for reference only, please contact customer service for detailed information).
Life Cycle：	/
ECCN：	N
AL：	N
Product Overview：	SINAMICS S120 Sensor Module SMC20 for evaluation of incremental (Sin/Cos 1Vpp) and absolute encoders (EnDat/SSI), used for encoder signal acquisition in drive systems
Degree of Protection：	IP20

Products with the same attribute : 0

Show details

Product Overview

File

6SL3055-0AA00-5BA3.pdf

Frequently asked questions

Must the resistor match the drive’s power rating?

Absolutely. The resistor must match the DC-bus and power class of the corresponding SINAMICS drive.
Does the resistor generate a lot of heat during use?

Yes during heavy braking. Proper ventilation or airflow is recommended for best thermal performance.
