Siemens spare part 6SL3055-0AA00-5CA2 drive product

Name: Siemens spare part 6SL3055-0AA00-5CA2 drive product
SKU: 6SL3055-0AA00-5CA2

Brand:

Siemens

Delivery Time:

Delivery time is estimated at 5-7 weeks (for reference only, please consult customer service for details).

Model:

6SL3055-0AA00-5CA2

Order Number:

6SL3055-0AA00-5CA2

Description:

SINAMICS SMC30 sensor module for incremental encoders: TTL/HTL or combined encoder SSI, with incremental code track or SSI encoder, without incremental code track/without Drive-CLiQ cable, 30mm frame width.

WhatsApp Inquire Now

Product parameters
Product Overview
About Us
File

Product parameters

Product attributes	Attribute value	Filter product attributes
Brand：	Siemens
Delivery Time：	Delivery time is estimated at 5-7 weeks (for reference only, please consult customer service for details).
Life Cycle：	/
ECCN：	N
AL：	N

Products with the same attribute : 0

Show details

Product Overview

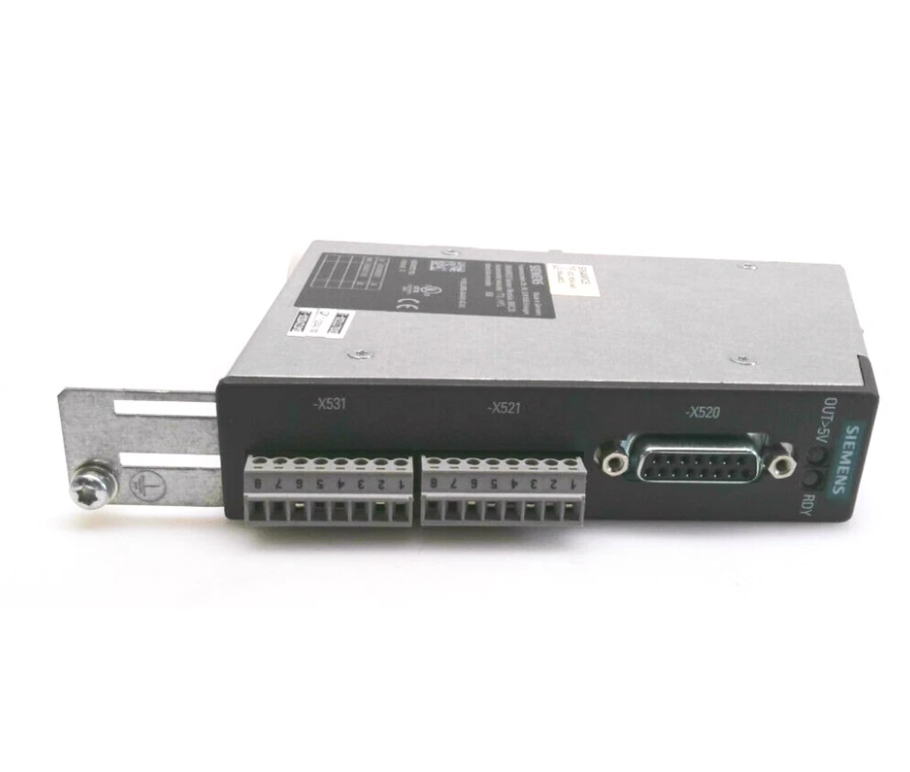

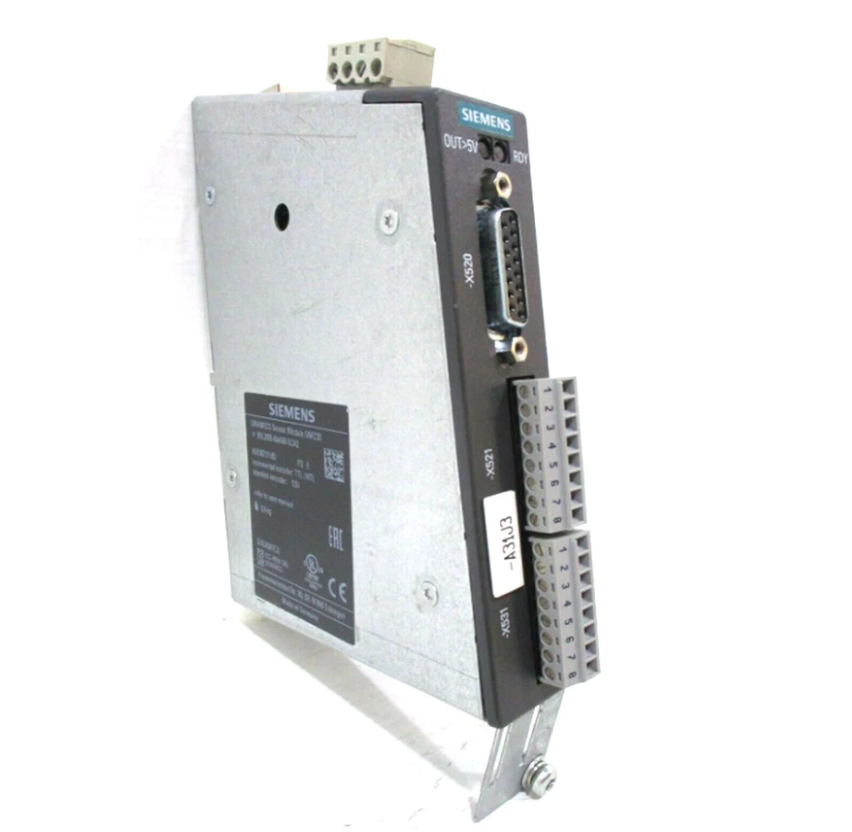

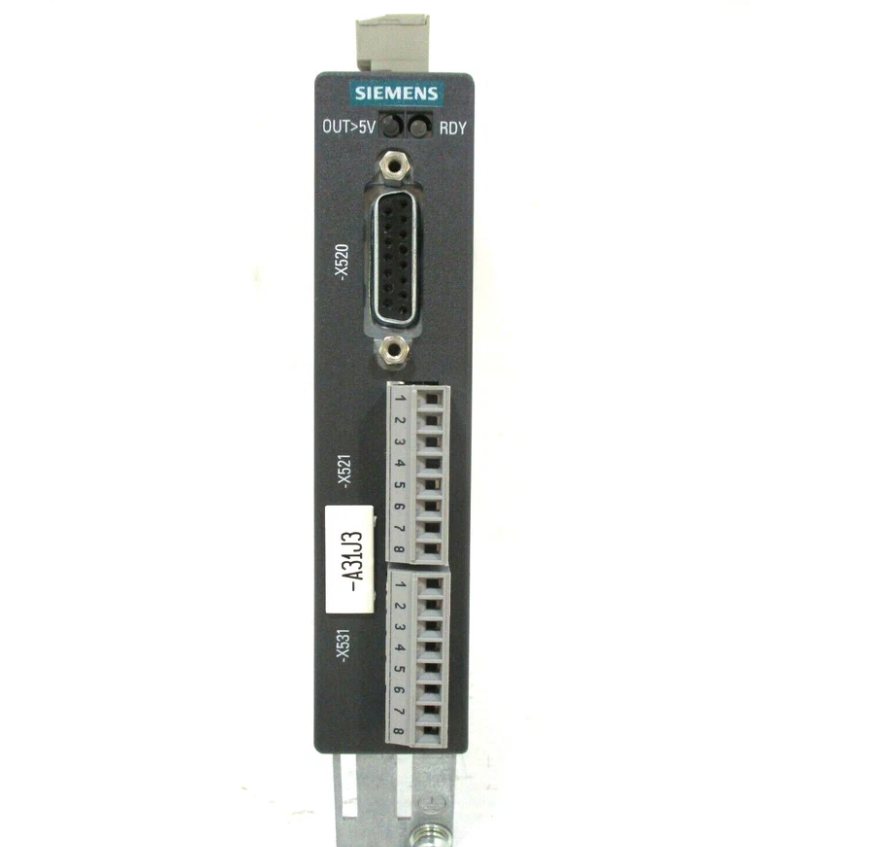

SIEMENS SINAMICS SMC30

Sensor Module Cabinet-Mounted

Product Overview

The Siemens SINAMICS SMC30 Sensor Module with article number 6SL3055-0AA00-5CA2 is a cabinet-mounted encoder interface module designed for the SINAMICS drive system. It evaluates encoder signals from motors and external encoders that do not have a direct DRIVE-CLiQ interface, enabling accurate actual-value acquisition for advanced drive-control applications.

This specific version supports TTL/HTL incremental encoders and SSI encoders, and is supplied without a DRIVE-CLiQ cable. It features a compact 30 mm overall width, making it suitable for space-efficient industrial control cabinets.

Key Features

Encoder Signal Evaluation
Supports incremental encoder signals including TTL and HTL, as well as SSI encoders with or without incremental signals.

Motor Temperature Monitoring
The SMC30 can also process motor temperature sensor signals such as KTY84-130, Pt1000, and PTC, providing additional monitoring capability for drive applications.

DRIVE-CLiQ Integration
An integrated DRIVE-CLiQ interface provides communication with compatible SINAMICS control units and drive components, allowing the SMC30 to become part of the SINAMICS system architecture.

High-Speed Encoder Processing
The module can evaluate encoder frequencies of up to 500 kHz, supporting high-speed motor and machine applications.

Cabinet-Mounted Design
The SMC30 is designed for installation inside industrial control cabinets and can be mounted on a TH 35 standard mounting rail according to EN 60715 / IEC 60715.

Technical Specifications

Parameter	Specification
Brand	Siemens
Product Family	SINAMICS
Product Type	SMC30 Sensor Module Cabinet-Mounted
Article Number	6SL3055-0AA00-5CA2
Application	Encoder signal evaluation / actual-value acquisition
Encoder Types	TTL / HTL incremental encoder; SSI encoder
Maximum Encoder Frequency	500 kHz
SSI Baud Rate	100–1,000 kBaud
SSI Absolute Position Resolution	30 bit
Electronics Supply	24 V DC
Electronics Current Consumption	≤ 0.20 A without measuring system; ≤ 0.35 A with measuring system
Encoder Supply Current	0.35 A
Maximum Power Loss	≤ 10 W
DRIVE-CLiQ Interface	1
Temperature Sensor Support	KTY84-130 / Pt1000 / PTC
Mounting	TH 35 standard rail
Overall Width	30 mm
Protection Rating	IP20 / IPXXB
Net Weight	Approx. 0.41 kg according to the current Siemens Industry Mall listing
DRIVE-CLiQ Cable	Not included

The electrical specifications are based on Siemens product documentation; Siemens documentation gives approximately 0.45 kg in the technical-manual specification, while the current Industry Mall listing gives 0.410 kg net weight.
