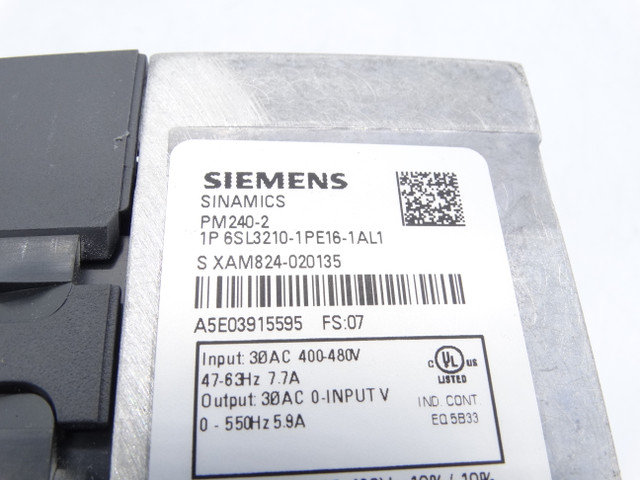

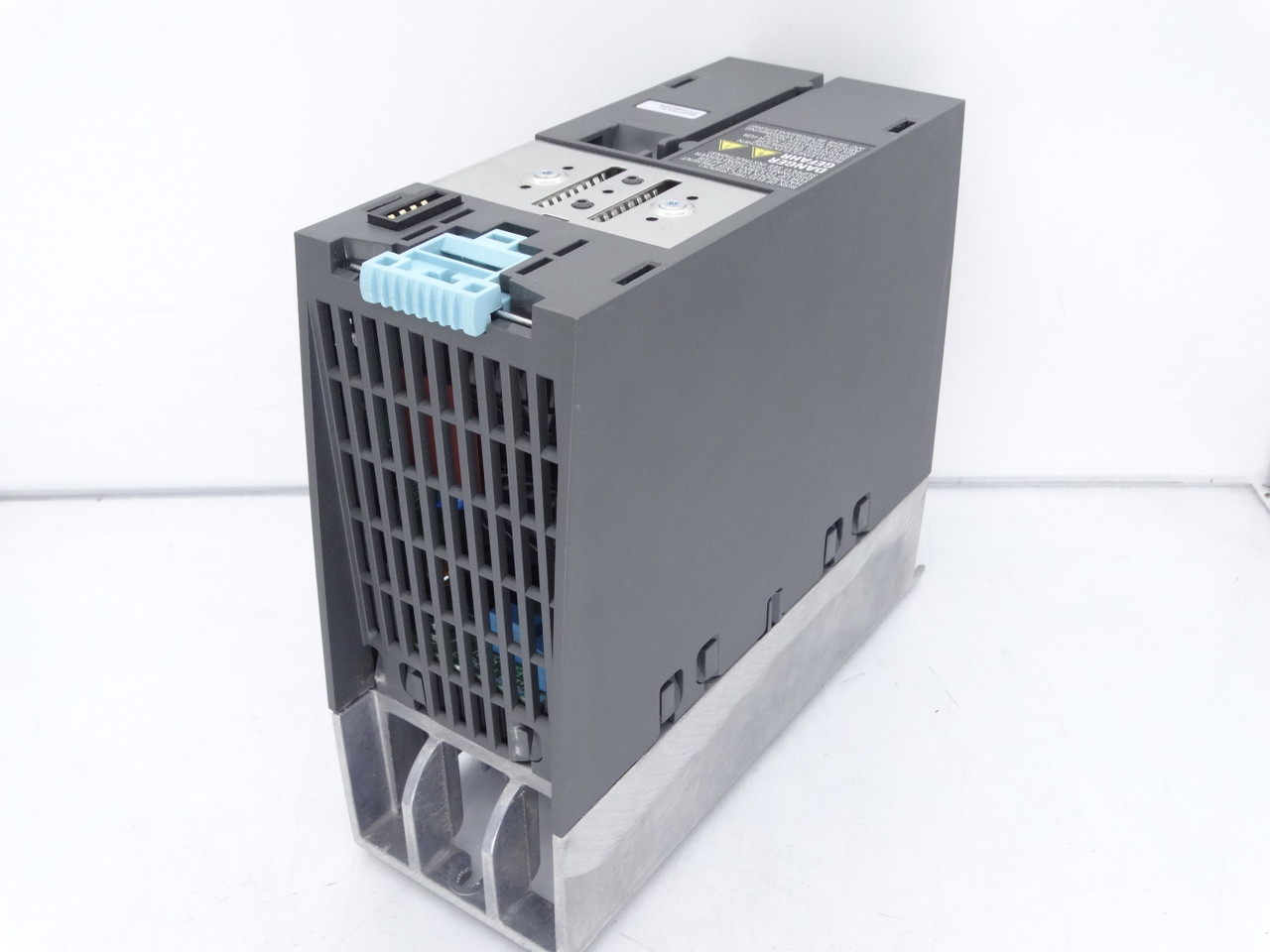

6SL3210-1PE16-1AL1 Siemens
Product parameters
| Product attributes | Attribute value | Filter product attributes |
|---|---|---|
| Brand： | Siemens | |
| Country of Origin： | Great Britain | |
| Certificate of suitability： | CE, UL, RoHS | |
| Max. operation： | 50°C | |
| Transport： | Industrial-grade packaging (anti-static, shockproof.) | |
| Storage： | -25°C to 70°C | |
| Operation： | -10°C to 50°C | |
| Display design： | No display | |
| Net weight： | 2.9 kg | |
| Packaging dimensions(LxWxH)： | 300 × 120 × 200 mm | |
| Delivery Time： | Estimated delivery time is 3 to 15 days (for reference only, please contact customer service for detailed information). | |
| Life Cycle： | / | |
| ECCN： | N | |
| AL： | N | |
| Product Overview： | SINAMICS G120 PM240-2 power module, 3AC 380–480V input, 2.2 kW (high overload) / 3.0 kW (low overload), with integrated braking chopper and Class A EMC filter, used in modular inverter systems | |
| Degree of Protection： | IP20 |
Product Overview
Frequently asked questions
-
Can the power module support energy-saving features?
Yes. When paired with an appropriate control unit, the drive can implement energy-optimized motor control modes, enabling lower consumption during low-load operation or idle periods—useful for automated lines with intermittent duty cycles.
-
What commissioning options are supported?
Users can configure the unit using Siemens STARTER, IOP operator panel, or TIA Portal. The software offers structured wizards that simplify tuning even for technicians unfamiliar with G120 systems.
-
How does the module handle overloads during process peaks?
The thermal model continuously monitors motor loading and adjusts switching behavior to prevent excessive heat rise. In temporary overload scenarios (e.g., process jams), the module provides controlled current delivery while initiating warnings before reaching shutdown thresholds.
-
Is harmonic mitigation necessary?
The module includes basic EMC and harmonic suppression, but highly sensitive plants or installations with strict power-quality regulations may require additional line filters. Siemens provides compatible filter modules for easy compliance with industrial EMC norms.
-
Can it be installed in older electrical cabinets with limited ventilation?
It is more tolerant of restricted airflow than larger modules due to optimized heat paths. Nevertheless, Siemens recommends maintaining at least minimal cooling airflow to preserve long-term reliability, especially in environments with ambient temperatures above 40°C.
-
Is the 6SL3210-1PE16-1AL1 suited for small pumps and HVAC fans?
Yes. Its efficient partial-load performance makes it ideal for airflow and water circulation systems. The module handles frequent start-stop sequences well and provides smooth ramping to reduce mechanical stress on impellers and motor bearings.
