Siemens spare part 6SL3211-1PE23-3UL0 drive product

Name: Siemens spare part 6SL3211-1PE23-3UL0 drive product
SKU: 6SL3211-1PE23-3UL0

Brand:

Siemens

Delivery Time:

Delivery time is estimated at 2-4 weeks (for reference only, please consult customer service for details).

Model:

6SL3211-1PE23-3UL0

Order Number:

6SL3211-1PE23-3UL0

Description:

SINAMICS Power Module PM240-2 Unfiltered with Integrated Brake Chopper 380-480V +10/-10% Three-Phase AC 47-63Hz Heavy Overload Power: 11kW at 200% for 3 seconds, 150% for 57 seconds, and 100% for 240 seconds; Ambient Temperature -10 to +50°C. Light Overload Power: 15kW at 150% for 3 seconds, 110% for 57 seconds, and 100% for 240 seconds; Ambient Temperature -10 to +40°C. 411 x 200 x 171 (H x W x D), FSC Protection Rating IP20-PT. Without Control Unit and Operating Unit. Licensed from CU Firmware - Version 4.6 onwards.

WhatsApp Inquire Now

Product parameters
Product Overview
About Us

Product parameters

Product attributes	Attribute value	Filter product attributes
Brand：	Siemens
Delivery Time：	Delivery time is estimated at 2-4 weeks (for reference only, please consult customer service for details).
Life Cycle：	/
ECCN：	N
AL：	N

Products with the same attribute : 0

Show details

Product Overview

SIEMENS SINAMICS G120

PM240-2 Push-Through Power Module

Product Overview

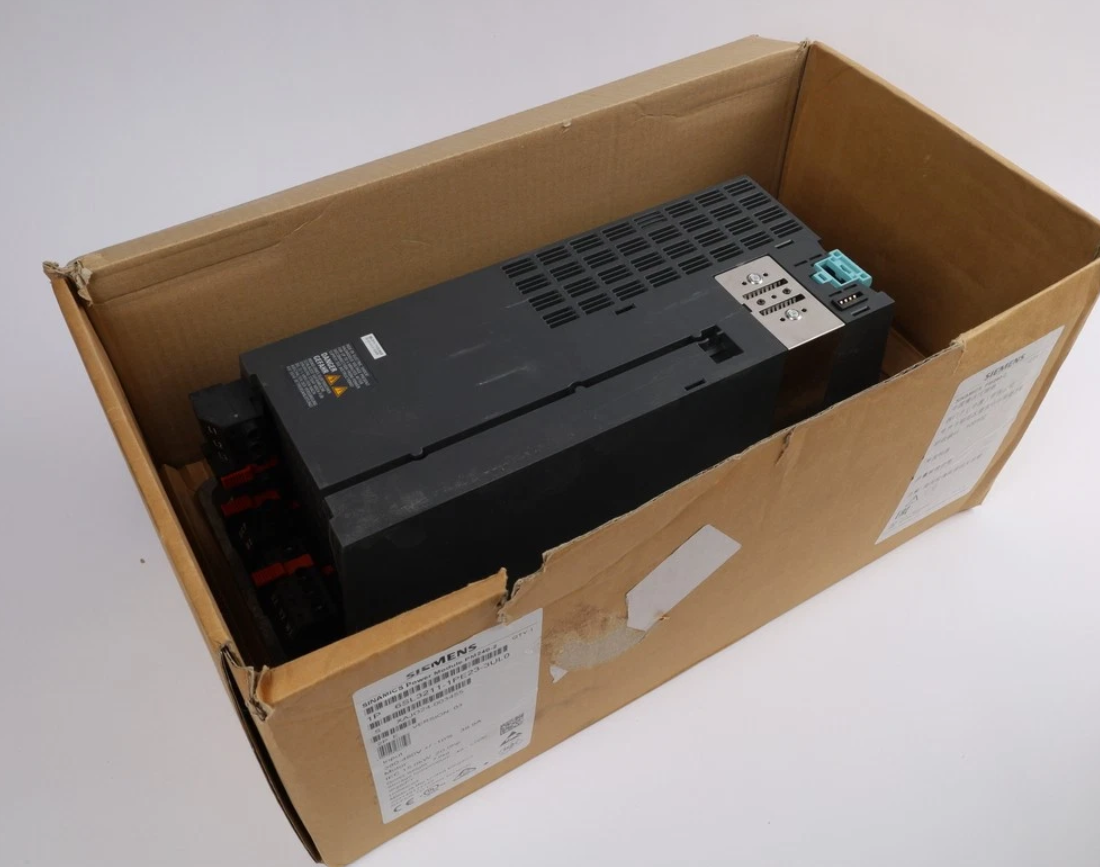

The Siemens SINAMICS G120 6SL3211-1PE23-3UL0 is a PM240-2 Push-Through Power Module designed for industrial variable-speed drive applications within the SINAMICS G120 platform.

This model is designed for 3-phase 380–480 V AC supplies and provides 15 kW Low Overload (LO) and 11 kW High Overload (HO) output capability. It features an integrated braking chopper and is supplied without an integrated EMC filter. Unlike the standard block-style PM240-2 variants, this version uses a push-through installation design, allowing the power electronics and heatsink to be positioned through the control cabinet enclosure for optimized thermal management.

The unit is supplied as a Power Module only, without a Control Unit or operator panel, and is intended to be combined with a compatible SINAMICS G120 Control Unit. Siemens documentation specifies it for operation with Control Unit firmware from V4.6 onward.

Key Features

PM240-2 Power Module

The PM240-2 forms the power-electronic stage of a SINAMICS G120 drive. Its primary function is to convert the incoming three-phase AC supply into a controlled electrical output for the motor.

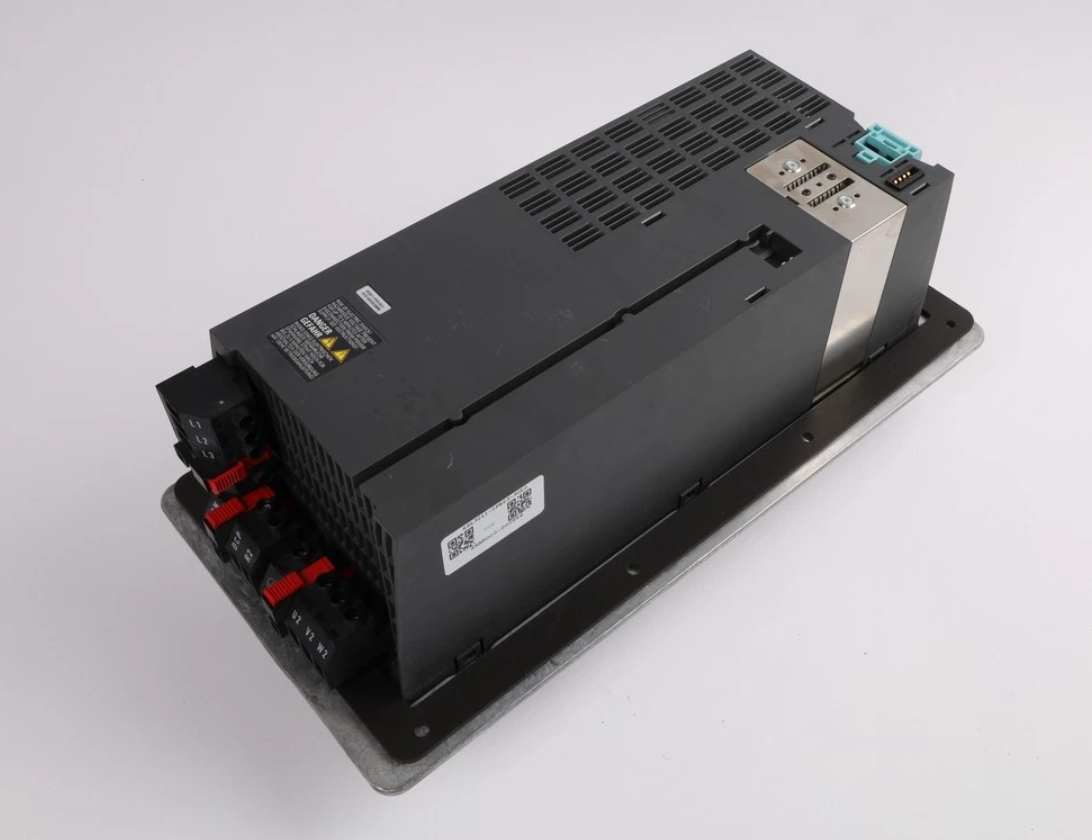

Push-Through Installation

The 6SL3211- designation identifies the push-through version of the PM240-2 family.

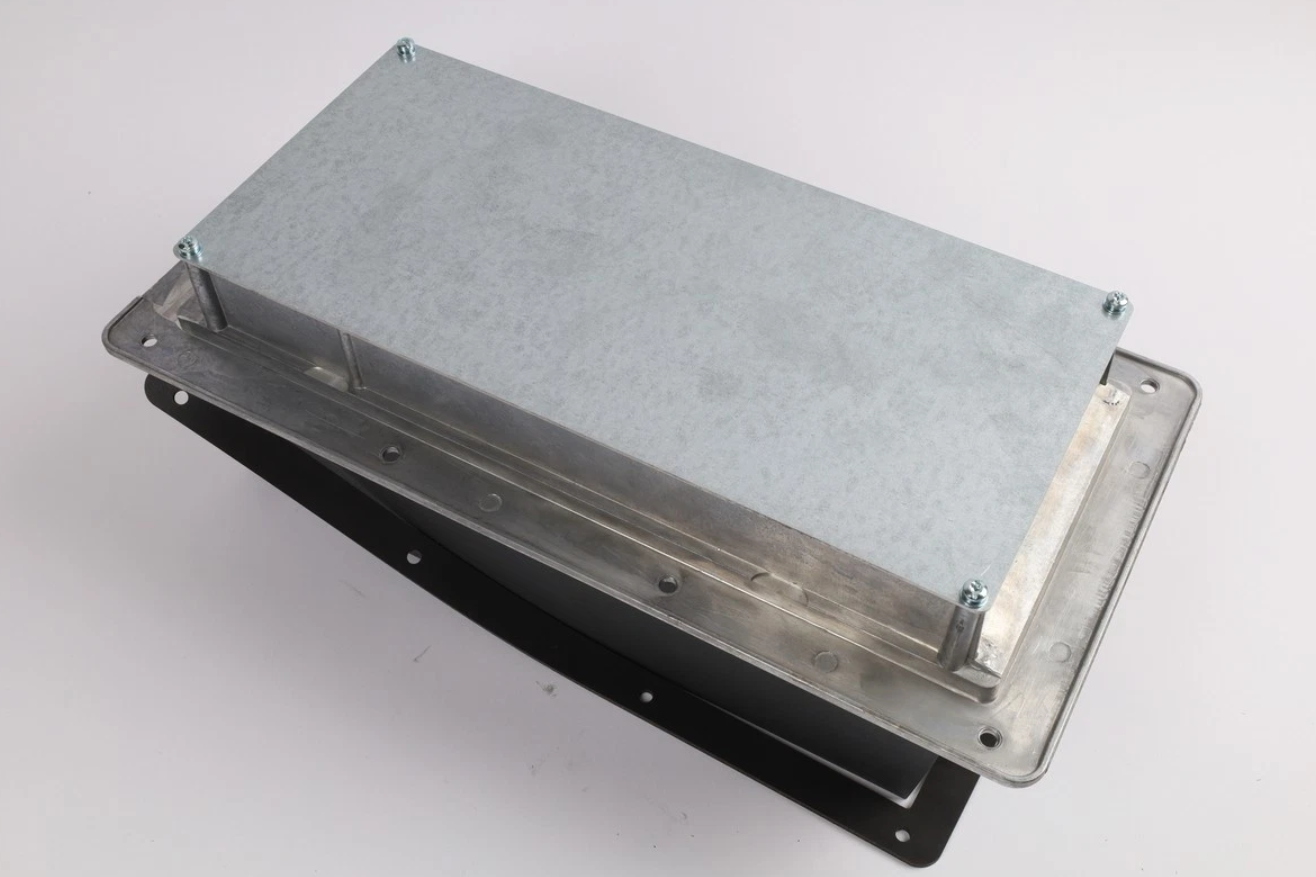

In this configuration, the power module is mounted through the rear wall of the control cabinet, allowing the heatsink and associated thermal components to extend outside the cabinet's conditioned interior space.

This architecture can reduce the thermal load transferred into the control cabinet and can be advantageous for high-power applications with limited cabinet cooling capacity. Siemens catalogs this model specifically as a PM240-2 Push-Through variant.

15 kW Low-Overload Rating

The converter provides:

15 kW Low Overload

with a 32 A LO output current.

11 kW High-Overload Rating

For applications requiring greater short-term torque capability, the drive provides:

11 kW High Overload

with a 26 A HO output current.

Integrated Braking Chopper

The PM240-2 incorporates an integrated braking chopper, allowing an external braking resistor to be connected.

During rapid deceleration, regenerative energy can raise the DC-link voltage. The braking chopper switches the braking resistor into the DC circuit to dissipate this excess energy and help maintain the DC-link voltage within a permissible range.

Unfiltered Version

The UL0 configuration denotes the version without an integrated EMC filter.

This should be distinguished from the corresponding 6SL3211-1PE23-3AL0, which is the push-through version with an integrated Class A filter. Siemens documentation lists both variants in the same PM240-2 family.

Technical Specifications

Parameter	Specification
Manufacturer	Siemens
Product Family	SINAMICS G120
Product Type	PM240-2 Push-Through Power Module
Article Number	6SL3211-1PE23-3UL0
Input Voltage	3 AC 380–480 V +10% / −10%
Input Frequency	47–63 Hz
Low-Overload Power	15 kW
High-Overload Power	11 kW
LO Output Current	32 A
HO Output Current	26 A
Maximum Output Current	52 A
Low-Overload Capability	150% for 3 s, 110% for 57 s, 100% for 240 s
High-Overload Capability	200% for 3 s, 150% for 57 s, 100% for 240 s
Cooling	Internal air cooling / push-through construction
Braking Chopper	Integrated
EMC Filter	Not integrated
Frame Size	FSC
Protection Rating	IP20-PT
Dimensions (H × W × D)	Approx. 411 × 200 × 171 mm
Net Weight	Approx. 5.8 kg
Control Unit	Not included
Operator Panel	Not included
Minimum Control Unit Firmware	V4.6
Product Lifecycle	PM400 – Phase-out started
Country of Origin	Great Britain

The core electrical ratings, dimensions, weight and product status are supported by Siemens documentation and current catalog data.
