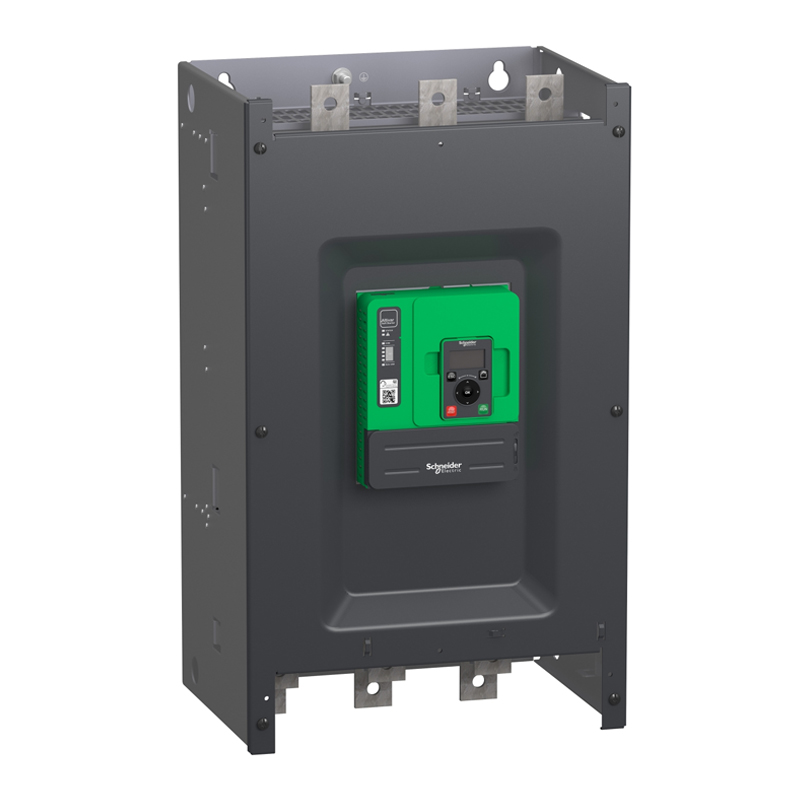

Schneider ATS-480C11Y 110A, 208～690V Soft Starter ATS480
Brand:
Series:
ATS480
Product Categories:
-
Built-In Bypass Contactor:
-
Voltage Level:
Three-phase 208-690VAC
Rated Power:
-
Applications:
Normal load application, heavy load application
Rated Current:
110A
Model:
ATS-480C11Y 110A, 208～690V
Order Number:
ATS480C11Y
Description:
Schneider soft starter ATS480 ATS-480C11Y 110A, 208～690V, three-phase 208-690VAC, built-in bypass contactor,110A
Product parameters
| Product attributes | Attribute value | Filter product attributes |
|---|---|---|
| Brand： | Schneider | |
| Series： | ATS480 | |
| Product Categories： | - | |
| Built-In Bypass Contactor： | - | |
| Voltage Level： | Three-phase 208-690VAC | |
| Rated Power： | - | |
| Applications： | Normal load application, heavy load application | |
| Rated Current： | 110A |
Products with the same attribute : 0
Show details
Series Overview
Series Overview
ATS480 Soft Starter for Asynchronous Motors: Shorten Engineering Time and Ensure Safe Operation
All - in - One Soft Starter
The Altivar Soft Starter ATS480 is the latest generation of digital soft starters from Schneider Electric. It is integrated into the EcoStruxure, enabling monitoring from the control cabinet to the cloud.
It can start and stop various motors.
5 Configurations of ATS480 Soft Starter
- Meet the network security requirements of IEC 62443
- Compatible with Modbus TCP network
- Match the voltage and power of the user's motor
- Control the ATS480 soft starter with the built - in controller to perform start - stop control, suitable for industrial standard applications
- The ATS480 soft starter has a rated working voltage of up to 690V and a rated current of up to 1200A
ATS480 Communication Compatibility
The communication of ATS480 can be compatible with ATS48:
- Motor control with IO and communication
- Phase sequence detection and phase loss detection
- Input/output of the controller
- Motor control mode
- Motor protection function
- Motor control components (such as contactors and relays)
- CANopen communication
- The configuration of the old - model soft starter can be transferred to ATS480
Innovation and Upgrade
- Ethernet IO
- Can be connected to the fieldbus
- Modbus TCP
- EtherNet/IP
- CANopen
- Profinet
- PROFINET IO
- Profibus DP
- Modbus RTU
- Web server
- Motor control and monitoring
Product and Software Advantages
- Unified Engineering Tools: Can be used for design, commissioning, and maintenance
- One - Click Start: Quick start
- Large - Scale Deployment: Multi - point configuration
- Diagnosis: Fault diagnosis
- Energy Saving: Energy - saving operation
- Isolation: Isolation of the control cabinet
- Conform to Standards: Comply with IEC 60721 - 3 - 3 standards for 3C3 harsh environments
- Compatibility: Compatible with EcoStruxure Machine Expert and EcoStruxure Plant SCADA
Shorten Engineering Time and Cost
- Unified Engineering Tools: The integrated automation of the entire project from design to operation can be achieved through EcoStruxure.
- Use EcoStruxure Machine Control Configurator: Motor control tools can quickly create complete soft starter solutions.
- Use EcoStruxure Machine Management Design: Motor management engineering tools optimize the electrical structure.
- Analyze all faults, solutions, and configurations
- Display energy - saving suggestions
- Report the status of the motor
- Use EcoStruxure Plant Builder: Define tags, perform design (including materials and unit prices)
- Use EcoStruxure Device Type Manager: Connect with derived function blocks (DFB), FDI, and visualization libraries (Faceplate)
- Use EcoStruxure Control Expert: Quickly write PLC programs in the control expert
- Use EcoStruxure System Platform: Use visual dashboards in the system platform
- Use EcoStruxure Automation Device Maintenance: Automatic equipment maintenance for large - scale hardware updates
Network Security
The internal security architecture of the soft starter helps protect equipment from internal personnel and external network attacks, reducing engineering costs and risks.
Advantages of ATS480 Soft Starter:
The ATS480 soft starter has the following advantages compared to the old - model ATS48:
- Torque Control System (TCS):
- Inherent safety control: TCS control technology
- Ease of use: Can be used in the simplest applications while maintaining powerful functions
- Simplicity: Only a few parameters need to be set in the simplest applications to achieve simple start - stop
- Monitoring of production:
- Monitor the motor through internal current transformers, PTC, or PT100
- Monitor energy consumption
- Monitor and control pressure and flow through sensors
- Monitor the power of the motor and other loads through energy meters
- Predictive maintenance
- Service Connectivity:
- Connect ATS480 to the cloud through a router to implement predictive maintenance solutions
- Motor Protection:
- Under the condition of a fault, the motor can be stopped; ATS480 can be set to stop or continue running at a fixed speed to supply power to the motor
- Maintenance personnel can quickly and accurately troubleshoot: No need to completely disconnect the soft starter to check internal fuses
- Network security advantages:
- User Management: Authentication and authorization for user access
- Communication Security: Secure communication protocols
- Data Integrity: Ensure data integrity during transmission
- Compliance: Comply with network security upgrade requirements
- Internal Security: Internal fault diagnosis and digital signature
- Event Recording: Record security events and fault causes
- Three - Layer Isolation: Isolation between internal networks
- Remote Monitoring: Remote monitoring and fault diagnosis through EcoStruxure
- Document Sharing: Share engineering documents through the QR code on ATS480
Environmental Friendliness and Sustainability
The ATS480 soft starter is an environmentally friendly product that meets the Green Premium environmental label of Schneider Electric.
Compliance Standards:
- RoHS compliance
- REACH compliance
- Green Premium compliance
Product Environmental Profile (PEP):
The PEP of the product complies with ISO 14025, providing transparent environmental information, including carbon footprint, energy consumption, raw material consumption, and pollution emissions throughout the life cycle.
Resource Management:
The ATS480 soft starter's resource information complies with IEC 62535, including information on end - of - life treatment to achieve maximum resource recovery.
ATS480 Soft Starter for Asynchronous Motors
Process Control, Infrastructure, and Industrial Machinery
The ATS480 soft starter is designed for the following industries:
- Water supply and sewage treatment
- Oil and natural gas
- Mining, metallurgy, and materials
- Food and beverage
- Marine
- Industrial machinery
ATS480 Advantages:
- Reliability: High reliability, reducing downtime
- Ease of Use: Easy to use and maintain
- Communication: Good communication capabilities
- Service: Strong service support
- Function: Powerful functions, including torque control, energy saving, etc.
Integrated into EcoStruxure Plant
The ATS480 soft starter can be integrated with Schneider Electric's automation control system EcoStruxure Process Expert for integrated control, providing high - performance, low - total - cost - of - ownership automated motor control solutions.
Product Features
The ATS480 soft starter is a soft starter with 6 - level current control, using TCS (torque control system) torque control algorithm to achieve soft start, stop, and speed regulation of three - phase asynchronous motors below 900kW.
ATS480 Advantages:
- Reduce operating costs by reducing mechanical stress and improving energy efficiency
- Reduce environmental risks by reducing mechanical shocks and improving equipment reliability
- Reduce the load on the low - voltage electrical system by reducing current peaks and voltage drops during motor starting
ATS480 Series Coverage:
- Voltage: 208V to 690V
- Current: Up to 1200A
ATS480 Communication:
Built - in Modbus communication protocol, each device has 2 RJ45 ports for:
- Connecting to configuration and maintenance software
- Connecting to text display or graphic display
- Connecting to Modbus master station
In addition, ATS480 has 1 communication port for the following communication modules: Modbus TCP, EtherNet/IP, CANopen, PROFINET, or PROFIBUS DP.
Ruggedness
The ATS480 soft starter is suitable for harsh environments.
- Ambient Temperature:
- Standard: - 10°C to + 40°C (14°F to 104°F), derating above 40°C
- High temperature: Up to + 50°C (122°F), derating
- Humidity: 5% to 95%, non - condensing
- Altitude: Up to 2000m (6562ft), derating above 1000m
- Environmental Standards: Comply with IEC 60721 - 3 - 3 3S3 and 3S5 standards
Certifications
The ATS480 soft starter has obtained the following certifications: UL, CE, UKCA, CCC, RCM, EAC, DNV, ABS, BV, CSS, REACH, EU RoHS, China RoHS, PEP, EcoVadis, Green Premium.
Integrated Functions
The ATS480 soft starter has multiple functions related to motor start - stop control, including:
- Dynamic Torque Control: Adjustable torque control during start - stop to reduce mechanical stress
- Energy Saving: Energy - saving operation mode
- Protection Functions: Overload, phase loss, over - voltage, under - voltage, etc.
- Communication Functions: Support multiple communication protocols
- Diagnosis and Maintenance: Fault diagnosis, maintenance reminder
Software and Tools
- EcoStruxure Machine Expert: For programming and configuration
- SoMove: For parameter setting and diagnosis
- EcoStruxure Automation Device Maintenance: For equipment maintenance and updates
Network Security
The ATS480 soft starter has a built - in network security strategy to protect equipment from unauthorized access and attacks, including:
- User Authentication: User name and password authentication
- Data Encryption: Secure data transmission
- Access Control: Limit unauthorized access
- Event Logging: Record security events
Life Cycle Management
The ATS480 soft starter supports life cycle management, including:
- Design: Integrated into EcoStruxure for unified design
- Commissioning: Quick commissioning through software tools
- Operation: Real - time monitoring and energy management
- Maintenance: Predictive maintenance and remote maintenance
- End - of - Life: Recyclable design to reduce environmental impact
