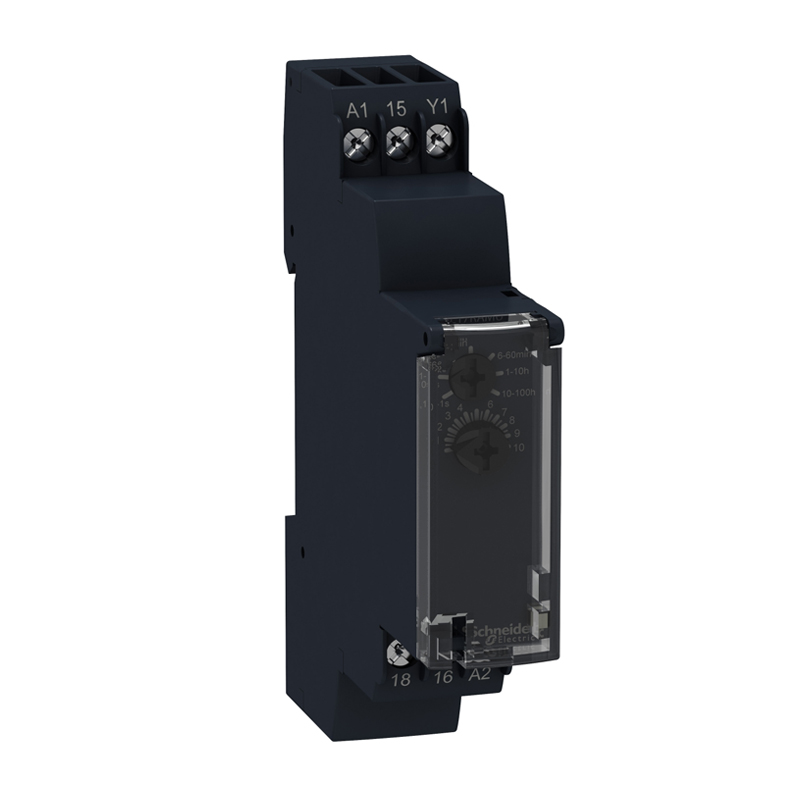

Schneider REXL4TMP7 Time Relay
Brand:
Series:
REXL
Time Range:
0.1s-100h
Output Type:
Relay output
Supply Voltage:
230VAC
Contact Type:
4C/O
Rated Current:
3A
Product Type:
Micro-Pluggable
Model:
REXL4TMP7
Order Number:
REXL4TMP7
Description:
Schneider time relay REXL4TMP7, micro pluggable, power supply voltage 230VAC, contact type 4C/O, relay output, time range 0.1s-100h,3A
Product parameters
| Product attributes | Attribute value | Filter product attributes |
|---|---|---|
| Brand： | Schneider | |
| Series： | REXL | |
| Function： | A | |
| Time Range： | 0.1s-100h | |
| Output Type： | Relay output | |
| Supply Voltage： | 230VAC | |
| Contact Type： | 4C/O | |
| Rated Current： | 3A | |
| Product Type： | Micro-Pluggable |
Products with the same attribute : 0
Show details
Series Overview
Series Overview
-
Time relays are components that can close or open contacts before, during, or after a set timing cycle and are used for time management in industrial automation systems.
-
There are mainly 2 installation types for time relay circuits
- DIN rail - mounted time relays (RE7, RE9, RE17, RE22...). They can be directly mounted on the DIN rail through the slot at the back of the housing.
- Socket - mounted time relay circuits (REX1). They are installed in cooperation with plug - in sockets.
- Panel - mounted time relays (RE48) are designed to be installed on the front of the panel for easy user setting.
- These relays have 1, 2, or 4 outputs. The second output can be a delayed output or an instantaneous output.
- If the power supply is cut off during the timing period, the relay will return to the initial position.
-
Application Examples
- Automatic door opening
- Alarm
- Toilet lighting
- Parking lot barriers
-
The following definitions help you understand the working principles of these relays
- Relay output: This is the most common output type. When the relay is powered on, the armature is attracted by the coil to trigger the contacts, thereby changing the contact state. When the relay is powered off, the armature and contacts return to their original positions.
- Solid - state output: These outputs are completely electronic and have no mechanical moving parts; therefore, they can extend the service life.
- Breaking capacity: The current value that the contacts can break under specified conditions.
- Mechanical life: The number of mechanical operation cycles of the contacts.
- Minimum switching capacity (or minimum electrical capacity): Refers to the minimum current allowed to pass through the relay contacts.
- GI (Gate) output: The gate output allows interrupting the ongoing timing without resetting.
