Phoenix PTVFIX 18X2,5-NS35A BU(1019538) Universal combination terminal PTV
Brand:
Series:
PTV
Terminal Type:
Terminal Blocks
Color:
blue
Material:
PA
Conductor Cross-Sectional Area:
0.14mm²-4mm²
Flame Retardant Grade:
V0
Connection:
Push-in connection
Terminal Thickness:
46.6mm
Function:
-
Rated Current:
24A
Rated Voltage:
690V
Model:
PTVFIX 18X2,5-NS35A BU(1019538)
Order Number:
1019538
Description:
Phoenix PTV PTVFIX 18X2,5-NS35A BU (1019538), material PA, 690V, V0, color blue, wire cross-sectional area 0.14mm²-4mm², terminal thickness 46.6mm, direct plug-in connection
Product parameters
| Product attributes | Attribute value | Filter product attributes |
|---|---|---|
| Brand： | Phoenix | |
| Series： | PTV | |
| Terminal Type： | Terminal Blocks | |
| Color： | blue | |
| Material： | PA | |
| Conductor Cross-Sectional Area： | 0.14mm²-4mm² | |
| Flame Retardant Grade： | V0 | |
| Connection： | Push-in connection | |
| Terminal Thickness： | 46.6mm | |
| Function： | - | |
| Rated Current： | 24A | |
| Rated Voltage： | 690V |
Products with the same attribute : 0
Show details
Series Overview
Series Overview

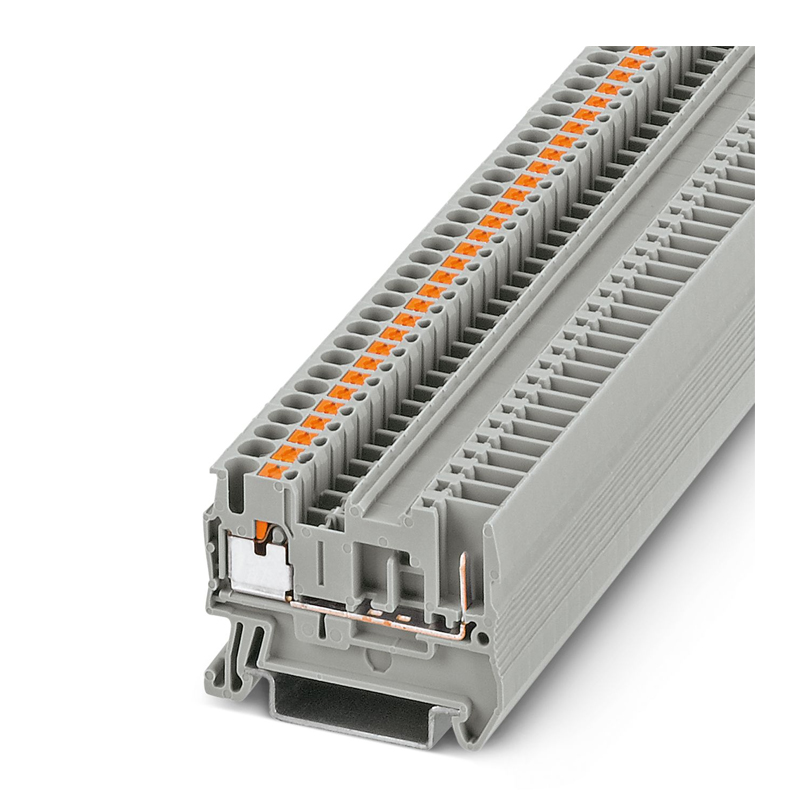

Direct Plug-in Self-locking Connection Technology
- Using PTV terminals, rigid wires or flexible wires with cold-pressed terminals can be directly inserted without tools. The unique spring design allows easy insertion of rigid wires with a diameter of 0.5 mm² or larger without using tools. When the wire is inserted, the spring will open automatically and ensure the required clamping force. By operating the ejection button, flexible wires with a diameter of 0.14 mm² or larger can be easily connected without cold-pressed terminals.
Overall Solution for Control Cabinets
- The PTV product series is part of the COMPLETE line. The COMPLETE line system includes matching hardware and software products, consulting services, and system solutions that can optimize the control cabinet manufacturing process. Thus, it greatly simplifies engineering design, procurement, installation, and operation processes.
Side Inlet for Clear Layout
- The PTV terminal series adopts side inlet, with clear wiring positions and no bending radius. The vertical wiring between the terminal blocks and the wiring ducts makes it easier to stick and read cable labels. In addition, the side inlet design makes the large-area labels of the terminal blocks clearer and more visible.
Disconnect Terminals and Knife Disconnect Terminals for Clear Separation of Signal Currents
- When space is limited, the PTV disconnect terminals with side inlet can clearly separate signal currents. This series of products includes disconnect terminals and knife disconnect terminals with a wiring capacity of 0.14 mm² to 6 mm². In addition, compact products without bridge connectors and with a wiring capacity of 2.5 mm² can also be provided.
Fuse Terminals for Quick Protection and Space Saving
- PTV fuse terminals can integrate G-type 5 x 20 fuses into the system, saving space and having a clear layout. The foldable cantilever allows quick and convenient replacement of fuses. With the side inlet design, the cantilever can be fully opened easily even when the wire is connected.
Disconnect Test Terminals
- PTVME disconnect test terminals are suitable for secondary wiring of instrument transformers and signals of switchgear, saving users time and cost. Through various accessories such as switch bridge connectors, short-circuit plugs, and test sockets, the disconnect test terminals can achieve multiple functions. At the same time, their rated voltage is as high as 1 kV, further protecting the equipment from the effects of electric arcs and surges.
