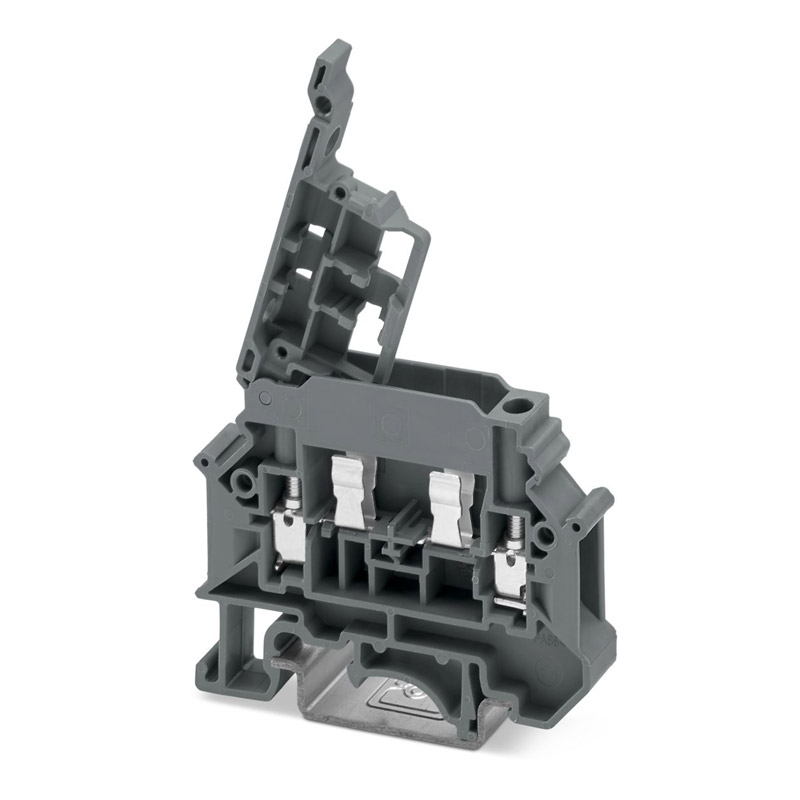

Phoenix AGK 4-UT 35(3047138) Universal combination terminal
Brand:
Series:
Other combination
Terminal Type:
Functional
Color:
grey
Material:
PA
Conductor Cross-Sectional Area:
4mm²
Flame Retardant Grade:
V0
Connection:
Screw connection
Terminal Thickness:
8.1mm
Function:
Tap Terminals
Rated Current:
32A
Rated Voltage:
1000V
Model:
AGK 4-UT 35(3047138)
Order Number:
3047138
Description:
Phoenix other combination AGK 4-UT 35 (3047138), material PA, 1000V, V0, tap terminal, color gray, wire cross-sectional area 4mm², terminal thickness 8.1mm, screw connection
Product parameters
| Product attributes | Attribute value | Filter product attributes |
|---|---|---|
| Brand： | Phoenix | |
| Series： | Other combination | |
| Terminal Type： | Functional | |
| Color： | grey | |
| Material： | PA | |
| Conductor Cross-Sectional Area： | 4mm² | |
| Flame Retardant Grade： | V0 | |
| Connection： | Screw connection | |
| Terminal Thickness： | 8.1mm | |
| Function： | Tap Terminals | |
| Rated Current： | 32A | |
| Rated Voltage： | 1000V |
Products with the same attribute : 0
Show details
Series Overview
Series Overview
Building Installation Terminal Blocks UIK...
- Terminal blocks for building installation, with a low-profile design, used in fan-shaped distributors.
- The asymmetric installation of terminal blocks on the DIN rail allows the PEN busbar to be routed towards the terminal blocks.
- Standard through-type terminal blocks UK 1.5 N to UK 16 N can be used together with the PEN busbar.
Ceramic Through-type Terminal Blocks SSK...
- Compact structure.
- Installed on G DIN rail NS 32.
- Using the opposite clamping of the terminal feet can securely lock in place.
- Screw-type connection makes potential distribution very simple.
Spring-assisted Through-type Terminal Blocks UST4
- Modular terminal blocks UST4... are developed specifically for the energy supply field.
- When used in combination with stranded cables, spring-assisted screw terminal blocks can fully meet the technical requirements of EATS 50-18.
- Universal installation, installed on NS 32 or NS 35 DIN rails.
- Through IS-K..., the bridge connection NS 32 or NS 35/15... cross-connection can be switched. The screw acts as a live switching component.
- Multiple markings can be made on each wiring point.
Spring-assisted Through-type Terminal Blocks UST6 and UST10
- The shapes of terminal blocks UST4 to UST10 are the same.
Miniature Through-type Terminal Blocks MT..., for NS 15 DIN Rail
- Compact design means that miniature terminal blocks MT 1.5 can meet the growing demand for smaller control boxes.
- The prominent features of miniature terminal blocks:
- Design width: only 4.2 mm.
- Rated cross-section: 1.5 mm².
- Clip-type support feet, used for DIN rail NS 15.
- Multiple marking methods.
- Bridge connection device in the center of the terminal block.
- One of the main tasks of modular terminal blocks in the control unit is potential distribution.
- Three-wire or four-wire terminal blocks MT 1.5DDTWIN or MT 1.5DQUATTRO can handle this task even in very small spaces.
- Terminal blocks with MUT plug-in bridge MT 1.5, the latest miniature terminal blocks, can also be referred to in the section "UT Screw Terminal Blocks".
- Double-layer miniature terminal blocks MTTB 1.5 can save space to the greatest extent.
- This double-layer terminal block has two through channels and can be bridged independently of each other.
- Can be used for 15 mm DIN rail NS 15 and 35 mm DIN rail NS 35.
Miniature Through-type Terminal Blocks MT... with 3 and 4 Connections, for NS 15 DIN Rail
- Design width: only 4.2 mm.
- Rated cross-section: 1.5 mm².
- Clip-type support feet, used for DIN rail NS 15.
- Multiple marking methods.
- Bridge connection device in the center of the terminal block.
OTTA... Through-type Terminal Blocks and Grounding Terminal Blocks
- With wiring nuts, wiring is convenient and fast.
- Can be used safely even in applications with the strictest requirements for dust and explosion protection.
- Saves space, compact structure.
- Integrated screw locking.
RBO 5... Screw Terminal Blocks, for M5 O-type and U-type Plug-in Heads
- Screw terminal blocks RBO 6..., for M6 annular and fork-shaped cable pins.
- Compact connection, with annular and fork-shaped cable pins.
- Bridge connection, used for potential distribution.
- Switch-type bridge connectors with insulation blocks.
- Installed on standard DIN rails or directly installed in control boxes.
RBO Screw Terminal Blocks, Open Type, for Annular and Fork-shaped Cable Pins
- Optional plug-in dust and explosion protection.
- Compact connection, with annular and fork-shaped cable pins.
- Perform potential distribution through bridge connectors.
- The rear panels of RBO 10, RBO 12 and RBO 16 screw terminal blocks can be sealed to prevent unauthorized operation. The plug-in rear panels supplied together with the rear panels can seal the rear panels.
- RBO 10, RBO 12 and RBO 16 each have a 4 mm test hole in the center of the terminal block.
RBO Screw Terminal Blocks with Rear Panels, for Annular and Fork-shaped Cable Pins
- With protection cover.
- Compact connection, with annular and fork-shaped cable pins.
- Perform potential distribution through bridge connectors.
- Applicable to RBO 10, RBO 12 and RBO 16 screw terminal blocks, the rear panels can be sealed to prevent unauthorized opening. Plugging in the cable pins supplied in the standard delivery can also achieve this function.
- RBO 10, RBO 12 and RBO 16 each have a 4 mm test hole in the center of the terminal block.
- The rear panels can be customized with the following labels:
- 0817028 EML (51X25) R
- 0817031 EML (51X25) R YE
- 0817002 EML (51X25) R SR
RSC... Screw Terminal Blocks, for M4 and M5 O-type and U-type Plug-in Heads
- O-type and U-type plug-in heads have a compact screw connection structure.
- Bridge connectors, used for potential distribution.
- Bridge connectors with insulation blocks can achieve potential distribution, so the bridge connection screws have the function of live plug-in pins.
- Installed on standard DIN rails or directly installed in control boxes.
- The directly pluggable insulation protection cover supports touch protection.
- Large area, no external parts and center marking.
- Nuts and current busbars are inside the insulation shell and cannot be removed.
Screw Connectors RSC 6..., M6 and Measurement Transducer Disconnect Terminal Blocks RSC 5-T..., M5
- Can be directly installed on the flange terminal blocks inside the control box.
- O-type and U-type plug-in heads have a compact screw connection structure.
- Bridge connectors, used for potential distribution.
- Can achieve potential distribution, bridge connectors with insulation blocks can achieve potential distribution, so the bridge connection screws have the function of live plug-in pins.
- The directly pluggable insulation protection cover supports touch protection.
- Large area, no external parts and center marking.
- Nuts and current busbars are inside the insulation shell and cannot be removed.
Building Grounding Terminal Blocks USLKG...
- Standard grounding terminal blocks USLKG 1.5 N to USLKG 16 N can be used together with the PEN busbar.
Miniature Grounding Terminal Blocks MT...-PE, for NS 15 DIN Rail
- Have the same shape as through-type terminal blocks.
- MT...-PE meets all the requirements of IEC 60947-7-2 standards.
- Its advantages:
- Low contact resistance.
- Yellow-green outer shell.
- Corrosion-resistant wiring points.
- Screws with insulation caps.
OTTA... Through-type Terminal Blocks and Grounding Terminal Blocks
- With wiring nuts, wiring is convenient and fast.
- Can be used safely even in applications with the strictest requirements for dust and explosion protection.
- Saves space, compact structure.
- Integrated screw locking.
Neutral Conductor Disconnect Terminal Blocks UKN...
- With screw disconnect modules.
- Have the same shape as through-type terminal blocks, grounding conductor terminal blocks and building terminal blocks.
OTTA 6-T... Disconnect Test Terminal Blocks
- Through OTTA 6-T... disconnect test terminal blocks, the test of the secondary circuit of the current can be easily completed.
- Compact structure.
- Switch bridge connectors with or without test sockets.
Equipment Terminal Blocks, Direct Installation, G 5/G 10 and GE 10...
- Finger touch protection.
- The convex edges on both sides of the outer shell interlock, simple connection.
- Each is installed with two screws (except for 2-position ones).
Equipment Terminal Blocks, Direct Installation, GE 35...
- Finger touch protection.
- Each is installed with two screws.
- Multiple markings can be made on each wiring point.
L/N/PE Terminal Blocks
- According to the requirements of DIN VDE 0100 or IEC 60204D1 / EN 60204D1 / VDE 0113D1 for electrical system installation, N, PE or line L are generally connected to the central busbar. Therefore, wires and terminal blocks must be clearly marked according to their corresponding circuits. Terminal blocks can meet these requirements in the following ways:
- By marking each terminal block individually.
- By distinguishing the outer shell by alternating blue and yellow-green colors.
- Use ZB, UC-TM and UCT-TM for large-area marking.
Three-layer Building Terminal Blocks PIK 4...
- PIK 4-PE/L/NT
- The outer shell of the terminal block includes three terminal types belonging to a single-phase circuit.
- Design thickness: 6.2 mm.
- The bottom layer accommodates the grounding wire connection, and will be automatically connected to the DIN rail during installation.
- The middle and outer layers of wires are directly connected to the terminal blocks for potential connection.
- The upper layer includes the neutral conductor connection, connected to the neutral conductor busbar through a firm disconnect module.
- PIK 4...
- Other types of the PIK series can realize all loop types encountered in real life.
- For example, using PIK 4DP/L/NT and PIK 4DL together can route three-phase circuits with a width of 12.4 mm. Compared with the standard wiring of single-layer building terminal blocks, this can save 18.6 mm of space.
Three-layer Building Terminal Blocks PIK 4...
- PIK 4DPE/L/NTB is specially used for indoor installation in medical treatment.
- After the N terminal of the PIK 4 terminal block meets the safety standard of DIN VDE 1000718, usually each loop needs to be protected by a leakage circuit breaker, so the PIK 4 terminal blocks are grouped.
- The small disconnect module on the terminal block has a single screw connection and bridge device, used to distribute the N-phase cable into several N outputs.
- The same-shaped PIK 4DL/L can establish a three-position connection.
Three-layer Building Terminal Blocks PIK 6...
- Three-layer building terminal blocks PIK 6 are used to install large three-phase electrical equipment such as general ventilation motors or industrial kitchen stoves.
- Have the same shape as PIK 4 terminal blocks.
- For all building terminal blocks of Phoenix Contact, the PEN busbar is installed at the same height.
- Due to the PIK 6 terminal blocks having a planning outer frame, there is no need to use a splint at the end of the terminal block.
- CLIP PROJECT PLANNING can help users quickly, conveniently and correctly plan and combine modular terminal blocks.
Miniature Double-layer Terminal Blocks MTTB 1,5
- Design width: only 4.2 mm.
- Rated cross-section: 1.5 mm².
- Clip-type support feet, used for DIN rail NS 15 and NS 35.
- Multiple marking methods.
- Both layers are equipped with bridge connection devices.
- Even if each wiring position is connected with a wire, wiring can also be conveniently done at the lower layer of the terminal block through the misaligned layer.
Miniature Double-layer Terminal Blocks MBKB 2,5...
- The features of miniature double-layer terminal blocks are: space-saving, low height and interlayer misalignment.
- Fixed bridge connectors and test connectors can be inserted in both layers.
Miniature Double-layer Terminal Blocks MBKB 2,5...
- Double-layer diode terminal blocks have MBB 2.5... and can be used for different switching tasks.
- The following loops can be realized in a very small space: power supply loop, test loop, reporting and error message loop.
- One loop can realize the following in a small space: power supply loop, test loop, reporting and error message loop.
