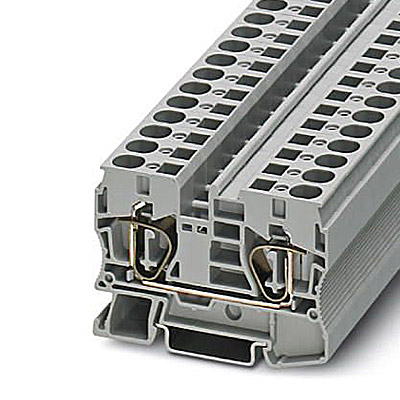

Phoenix TB 50 I (3247180) Universal combination terminal TB
Brand:
Series:
TB
Terminal Type:
Straight type
Color:
Dark Gray
Material:
PA
Conductor Cross-Sectional Area:
50mm²
Flame Retardant Grade:
V0
Connection:
Screw connection
Terminal Thickness:
20mm
Function:
-
Rated Current:
150A
Rated Voltage:
1000V
Model:
TB 50 I(3247180)
Order Number:
3247180
Description:
Phoenix TB 50 I (3247180), material PA, 1000V, V0, color dark gray, wire cross-sectional area 50mm², terminal thickness 20mm, screw connection
Product parameters
| Product attributes | Attribute value | Filter product attributes |
|---|---|---|
| Brand： | Phoenix | |
| Series： | TB | |
| Terminal Type： | Straight type | |
| Color： | Dark Gray | |
| Material： | PA | |
| Conductor Cross-Sectional Area： | 50mm² | |
| Flame Retardant Grade： | V0 | |
| Connection： | Screw connection | |
| Terminal Thickness： | 20mm | |
| Function： | - | |
| Rated Current： | 150A | |
| Rated Voltage： | 1000V |
Products with the same attribute : 0
Show details
Series Overview
Series Overview
-
- TB I: A new product with high cost-effectiveness
-
- Optimized copper busbar structure
-
- V0 flame retardant rating
-
- Rated working voltage: 800V
-
- UL, CE
TB I Terminal Busbar
Adopts a special structural design. The top punching adds 3 to 4 turns of thread force - bearing. During the screw tightening process, the upper part of the busbar will have a slight inward deformation, and the multi - angle realizes the fixing of the wire. Similarly, the self - locking function of the screw can be achieved.
TB I Series - Accessory System
-
- Central fixed bridge connector
-
- Side plug - in bridge connector
-
- Functional plug
-
- Test plug
-
- Fully finger - touch safe
UTF Series Wide Terminal Solutions
UTF and other wide terminals have the characteristics of multi - position continuous bridging, unified identification, and neat and beautiful appearance after assembly.
A typical application scenario is the control system in the petrochemical industry. A large number of through terminals, knife disconnect terminals, and fuse terminals need to be applied in the control cabinet. The existing terminal solutions will encounter problems such as inability to quickly connect and bridge, inability to quickly identify the whole, easy falling off of plug - in fuse plugs, and unsightly terminal strips in the cabinet.
The newly launched UTF series wide terminals by Phoenix Contact have the following characteristics:
- (1) Quick continuous bridging, with bridging of up to 3 positions, and cooperate with plug - in bridge connectors to make bridging more convenient;
- (2) Overall quick identification, which can be uniformly and quickly marked, and the identification marks are at the same horizontal line;
- (3) Cantilever fuse module, integrated structural design, the fuse module is not easy to fall off and is convenient for bridging;
- (4) The external dimensions of the terminals are consistent, with a thickness of only 5.2mm, which ensures the neat and beautiful appearance of the terminal strips to the greatest extent and saves space in the cabinet.
Product Overview of UTF Series Wide Terminals
The UTF series wide terminal solutions provide 3 main product types: through type, knife disconnect type, and fuse type, which can be conveniently combined to meet the wiring needs in different scenarios.
Through Type
Through - type terminals adopt a misaligned bridging design and cooperate with plug - in bridge connectors to quickly realize the function of continuous bridging.
Knife Disconnect Type
Has the function of knife disconnect. A screwdriver can easily open the knife to realize circuit disconnection.
Fuse Type
Can conveniently realize the function of circuit protection. Uses a cantilever fuse module with an integrated structural design, which is not easy to fall off and is convenient for bridging. Additionally, models with LED lights are provided, covering different voltage ranges.
