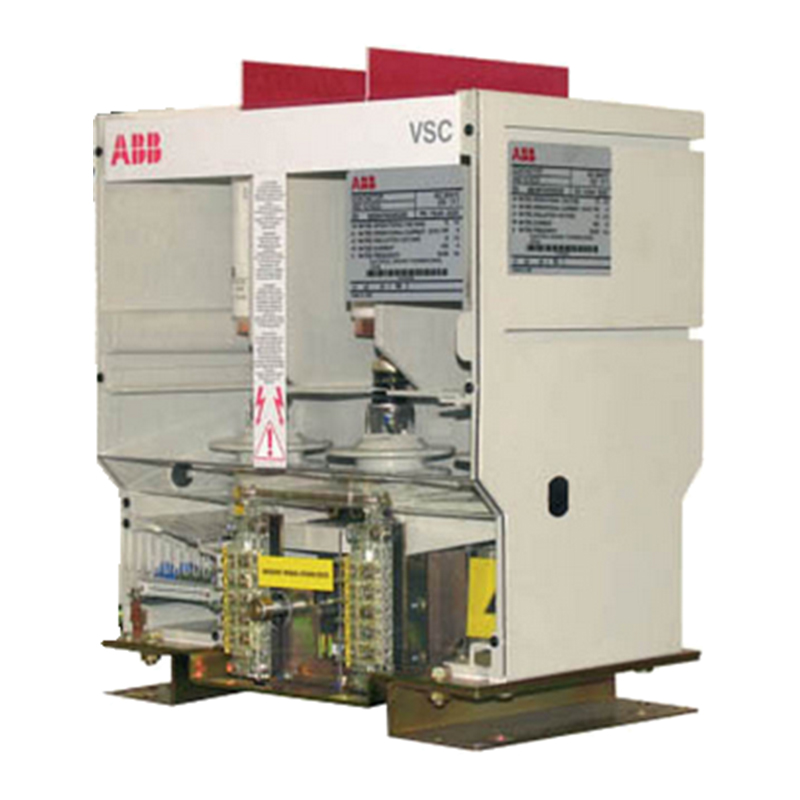

ABB VSC 12KV-400A 110VDC SCO N-HT 51004232 Vacuum Contactor

Name: ABB VSC 12KV-400A 110VDC SCO N-HT 51004232 Vacuum Contactor
SKU: 51004232

Brand:

ABB

Series:

VSC

Control Method:

Single command

Contactor Rated Current:

400A

Optional Accessories:

Rated Short-Circuit Breaking Current:

4000A

Phase Spacing/Pole Spacing (mm):

115/130

Fuse Holder:

Control Voltage:

110-130VDC

Rated Voltage:

12kV

Installation:

Fixed

Model:

VSC 12KV-400A 110VDC SC N-HT 51004232

Order Number:

51004232

Description:

Rated voltage 12kV, phase spacing/pole spacing 115/130, rated short-circuit breaking current 4000A, contactor rated current 400A, fixed type

WhatsApp Inquire Now

Product parameters
Series Overview

Product parameters

Product attributes	Attribute value	Filter product attributes
Brand：	ABB
Series：	VSC
Control Method：	Single command
Contactor Rated Current：	400A
Standard Accessories：	Close/open position indicator, operation counter, wide power supply voltage module, plug-in terminal box, auxiliary switches BB1, BB2, secondary circuit aviation plug
Optional Accessories：	-
Rated Short-Circuit Breaking Current：	4000A
Phase Spacing/Pole Spacing (mm)：	115/130
Fuse Holder：	No
Control Voltage：	110-130VDC
Rated Voltage：	12kV
Installation：	Fixed

Products with the same attribute : 0

Show details

Series Overview

The VSC medium - voltage vacuum contactor is an electrical device suitable for AC power distribution systems. It is especially an ideal electrical appliance for frequent operation occasions. Its configured bistable "MAC" type permanent magnet operating mechanism is powered by a wide - voltage power module. Different power modules can be selected according to the requirements of functional modules and auxiliary power supply voltages. It includes two operation modes:

SCO (Single Command Operation): The auxiliary power supply closes when powering the contactor; the contactor opens when it receives an opening command when the auxiliary power supply is cut off or the auxiliary power supply voltage is insufficient.
DCO (Dual Command Operation): The contactor closes when it receives a closing command sent in a pulse mode; similarly, the contactor opens when it receives an opening command sent in a pulse mode.

Product Features

The original imported vacuum arc - extinguishing chamber is especially suitable for frequent operation loads such as closing motors, with a current - chopping value as low as 0.5A.
Installation methods include fixed type and withdrawable type.
Up to 1 million electrical/mechanical service lives.
Environmentally friendly, with extremely low power consumption, saving more operating costs for customers.
Application scope: As an electrical control switching device, it can be widely used in power plants, industry, services, shipping and other industries. And it can operate under particularly harsh conditions.
The contactor is suitable for controlling and protecting motors, transformers, capacitor banks, switch systems, etc.
With a suitable fuse, it can be used in a network with a short - circuit capacity of up to 1000MVA.
