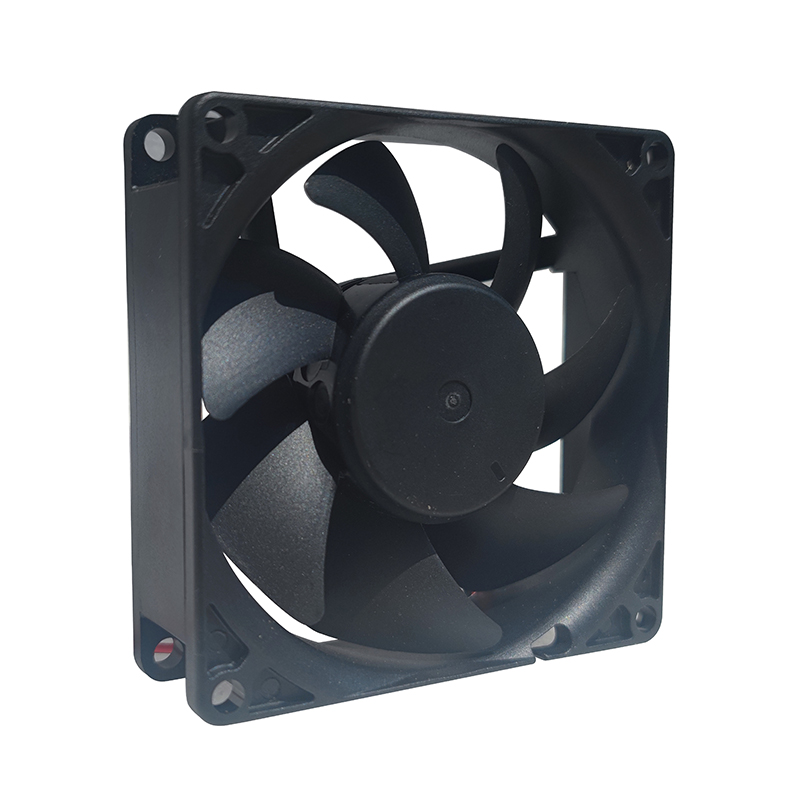

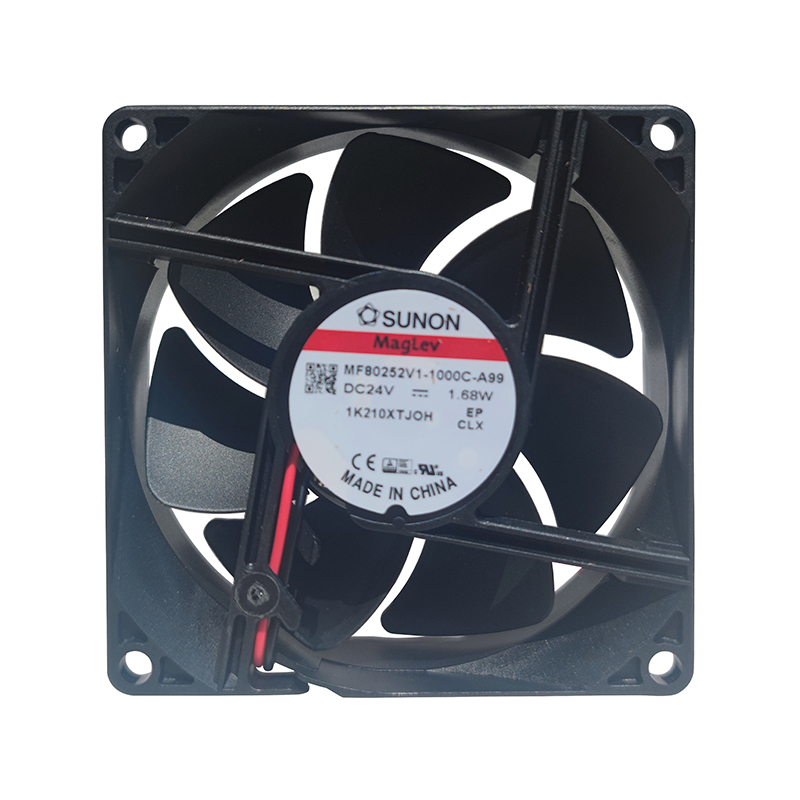

MF80252V1-1000C-A99 SUNON Axial Fan
Product parameters
| Product attributes | Attribute value | Filter product attributes |
|---|---|---|
| Brand： | SUNON | |
| Type： | Axial Fan | |
| Max. Air Flow： | 180 m³/h | |
| Voltage Type： | DC | |
| Degree of Protection： | IP20 | |
| Conformity with Standards： | UL、TÜV、CE | |
| Motor Bearing： | Double Ball Bearing | |
| Direction of Rotation： | Clockwise | |
| Housing Material： | SECC | |
| Impeller Material： | PA66+30%GF | |
| Height： | 25 mm | |
| Width： | 80 mm | |
| Length： | 80 mm | |
| Noise： | 35 dB | |
| Max. Pressure： | 70 Pa | |
| Max. Ambient Temperature： | 70 ℃ | |
| Min. Ambient Temperature： | -10 ℃ | |
| Input Power： | 5 W | |
| Speed： | 3000 RPM | |
| Voltage： | 24 V | |
| Series： | MF |
Details
Application scenarios
-
Air Purifiers
Air purifiers remove dust, pollen and bacteria from indoor air. A fan draws outside air into the air purifier, where it is purified through various fiSee more -
Rail Transit
Heat pump is a device that transfers heat from a low-temperature environment to a high-temperature environment by consuming a small amount of electricSee more -
Cooling Towers
A cooling tower is a device that uses water and air to dissipate waste heat generated in industry or refrigeration and air conditioning through evaporSee more -
ICT and Electronics Industry
Fans play a key role in heat management, environmental control, equipment protection and energy efficiency optimization in the ICT and electronics indSee more
Frequently asked questions
-
Characteristics and classification of axial flow fans
Axial flow fans are usually installed on the cabinets of electrical equipment, and sometimes integrated on the motor. Due to their compact structure, axial flow fans can save a lot of space and are easy to install, so they are widely used.
As the name implies, the airflow of the axial flow fan is axial movement. It is characterized by simple structure, low noise, large air volume, but can withstand low wind pressure. Therefore, the axial flow fan is suitable for ventilation and heat dissipation, which requires large air volume and low wind pressure.
According to the classification of wind direction: it can be divided into A (stator side to rotor side blowing) and V (rotor side to stator side blowing)
EBM has derived multiple series according to the structure of the axial flow fan:
Ebm A series: It is composed of motor plus blades
Ebm S series: It is composed of motor plus blades and mesh cover
Ebm W series: It is composed of motor plus blades and wind tube
A, S, W series fans are universal, and can also be equipped with accessories separately. For example, our friend's fan is S or W, with a mesh cover or wind tube. If the fan inside is broken, you can directly replace the A series motor plus blade fan, which can also save costs.
