V-FloFan-Vertical circulation
Brand:
Max Air Output:
The maximum air volume ranges from 2,970 to 3,060 cfm for single-phase configurations , and from 2,970 to 3,120 cfm for three-phase configurations.
Applications:
Primarily developed for Horticulture (Greenhouses) to support Next Generation Growing (NGG) and Agricultural facilities (such as Poultry housing) to maintain uniform temperature layers and control humidity.
Product Category:
Vertical Circulation Fans (V-FloFan).
Impeller Diameter:

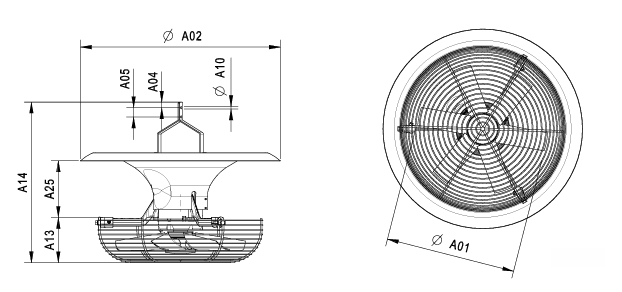

Has a nominal fan size of 16 inches , with an actual outer impeller diameter (A01) measuring 16 1/2 inches.
Model:
V-FloFan-Vertical circulation
Order Number:
V-FloFan-Vertical circulation
Description:
V-FloFan-Vertical circulation
Product parameters
| Product attributes | Attribute value | Filter product attributes |
|---|---|---|
| Brand： | Multifan | |
| Motor Warranty： | Comes with a standard 3-year warranty on the fan. | |
| Motor Protection Rating： | Features a water and dust resistant motor rated at IP55. | |
| Energy Efficiency / SFP： | Energy efficiency performance at 0" SP ranges from 14.4 to 18.0 cfm/watt for single-phase models , and from 15.7 to 19.2 cfm/watt for three-phase models. | |
| Static Pressure Range： | Engineered for free-air vertical circulation, with performance data measured and tested specifically at 0" SP. | |
| Air Distance： | Covers an effective horizontal air distribution area of approximately 60 feet (+/- 60 feet) , with a recommended maximum installation height of 16.5 feet to achieve optimal results. | |
| Max Air Output： | The maximum air volume ranges from 2,970 to 3,060 cfm for single-phase configurations , and from 2,970 to 3,120 cfm for three-phase configurations. | |
| Applications： | Primarily developed for Horticulture (Greenhouses) to support Next Generation Growing (NGG) and Agricultural facilities (such as Poultry housing) to maintain uniform temperature layers and control humidity. | |
| Product Category： | Vertical Circulation Fans (V-FloFan). | |
| Impeller Diameter： | Has a nominal fan size of 16 inches , with an actual outer impeller diameter (A01) measuring 16 1/2 inches. |
