ABB GSH203 A-C40/0.03(10105490) miniature leakage protection circuit breaker
Brand:
Series:
GSH200
Leakage Protection Type:
A
Leakage Tripping Type:
ELE (Electronic)
Leakage Current:
30mA
Rated Current:
40A
Trip Characteristics:
C
Poles:
3P
Rated Voltage:
230/400VAC
Breaking Capacity:
6KA
Model:
GSH203 A-C40/0.03(10105490)
Order Number:
10174658
Description:
GSH203 A-C40/0.03, trip characteristic C, leakage current 30mA, 40A, breaking capacity 6KA, ELE, pole number 3P, 230/400VAC
Product parameters
| Product attributes | Attribute value | Filter product attributes |
|---|---|---|
| Brand： | ABB | |
| Series： | GSH200 | |
| Leakage Protection Type： | A | |
| Leakage Tripping Type： | ELE (Electronic) | |
| Leakage Current： | 30mA | |
| Rated Current： | 40A | |
| Trip Characteristics： | C | |
| Poles： | 3P | |
| Rated Voltage： | 230/400VAC | |
| Breaking Capacity： | 6KA |
Products with the same attribute : 0
Show details
Series Overview
Outline

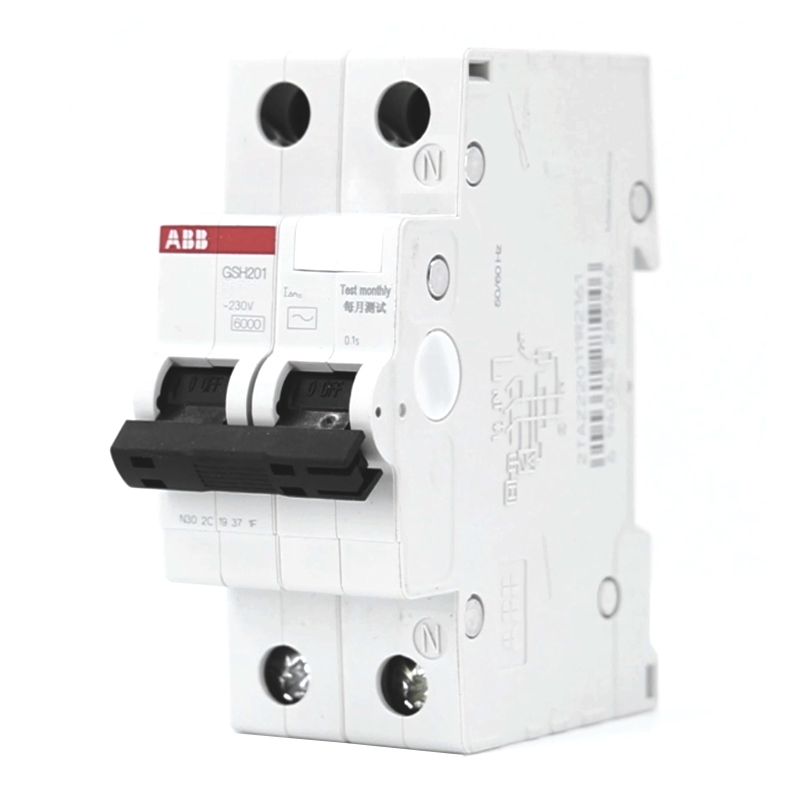

GSH200 series Residual Current operated Circuit-Breakers with Overcurrent protection (RCBOs) are ABB products specifically designed for household distribution circuits. They feature a rated breaking capacity of 6kA, characterized by being economical, quick to install, safe and reliable.
Classification by Detectable Residual Current Type
- Type AC: RCBOs ensuring tripping for suddenly applied or slowly rising residual sinusoidal alternating currents.
- Type A: RCBOs ensuring tripping for suddenly applied or slowly rising residual sinusoidal alternating currents and for residual pulsating direct currents.
Classification by Time Delay upon Residual Current Occurrence
- Instantaneous Trip Type (General Type): Trips immediately without intentional time delay when a residual current exceeding the operating value occurs in the system.
- Type S (Selective Type): Specifically designed to achieve a predetermined limiting non-operating time corresponding to a given residual current value, in order to achieve the purpose of selective coordination with series-connected upstream and downstream protective devices.
- Type AP-R (Surge-immune Type): Equipment with ground-connected capacitors and inductors can generate instantaneous residual currents upon startup, often causing residual current protective devices to trip. AP-R is specifically designed for such sensitive loads. Simultaneously, instantaneous overvoltages caused by lightning, system switching overvoltages, high-frequency leakage currents, system asynchrony, etc., may all lead to the maloperation of residual current circuit-breakers. AP-R provides a short residual current non-operating time, effectively avoiding maloperation, thus providing reliable safety protection for the normal operation of equipment.
Classification by Tripping Principle
- Electromagnetic Type: Tripping function is independent of line voltage.
- Electronic Type: Tripping function is dependent on line voltage.
