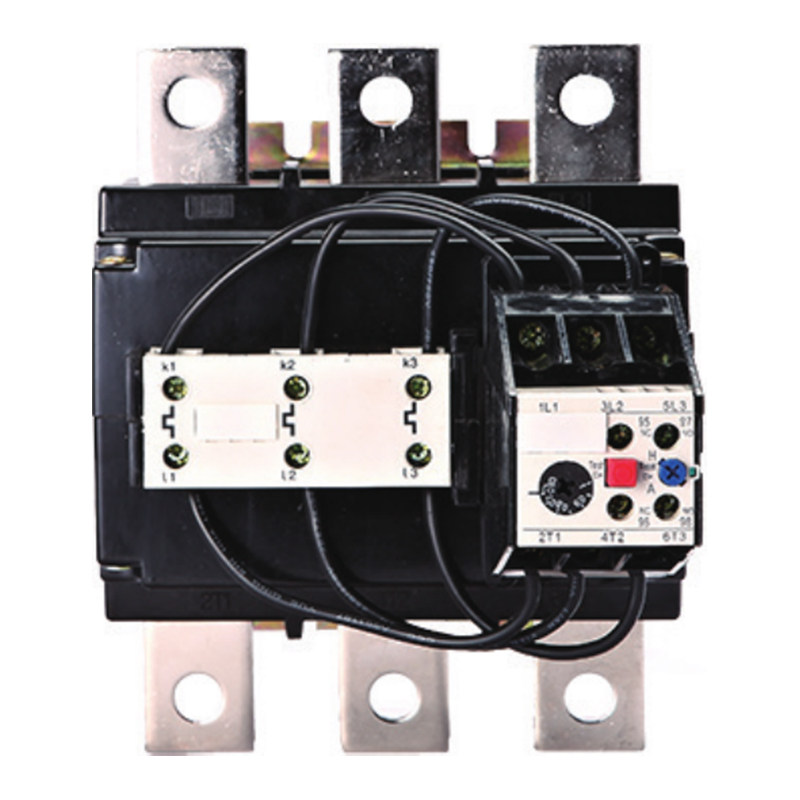

CS Switch CJR3B-95048 Overload Relay
Brand:
Series:
CJR3B
Setting Current Range:
48-68A
Applicable Contactor:
CK3B-80/CK3B-95
Product Type:
Electric heating
Model:
CJR3B-95048
Order Number:
C0183676
Description:
CS Switch overload relay CJR3B-95048, electric heating type, suitable for contactor CK3B-80/CK3B-95, setting current range 48-68A
Product parameters
| Product attributes | Attribute value | Filter product attributes |
|---|---|---|
| Brand： | CS Switch | |
| Series： | CJR3B | |
| Setting Current Range： | 48-68A | |
| Applicable Contactor： | CK3B-80/CK3B-95 | |
| Product Type： | Electric heating |
Products with the same attribute : 0
Show details
Series Overview
Series Overview
Product Overview

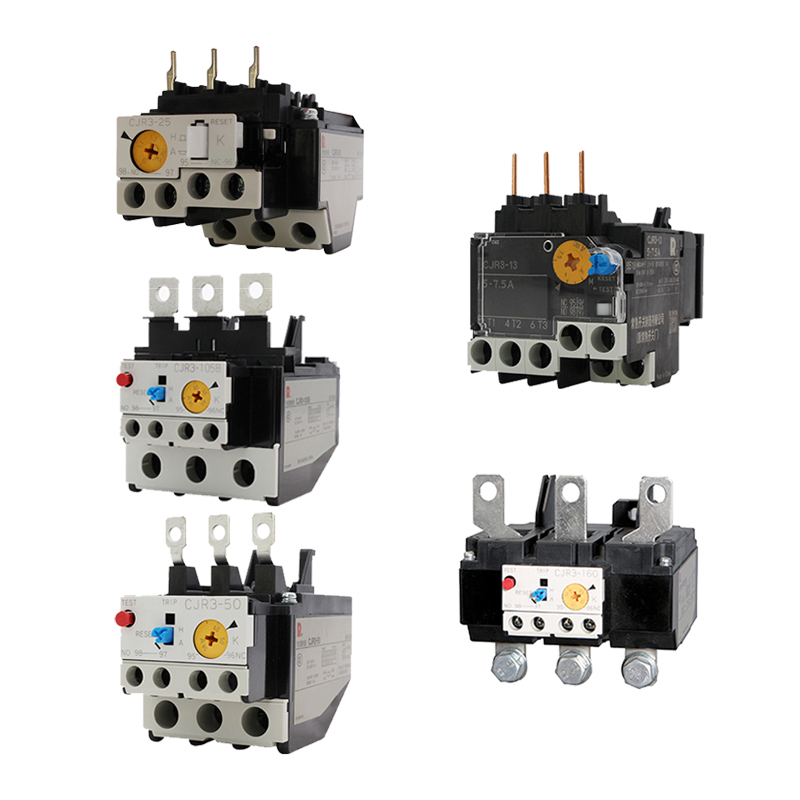

- CK3/CK3B series AC contactors and CJ3/CJR3B series thermal overload relays are small - volume and highly reliable products. They are divided into two major series:
- CK3 series contactors and corresponding CJ3 series thermal overload relays. The contactors have 22 specifications with a current range of 9A - 800A at AC400V, and the thermal overload relays have 11 specifications with a current range of 0.1A - 450A.
- CK3B series contactors and corresponding CJR3B series thermal overload relays. The contactors have 11 specifications with a current range of 6A - 95A at AC400V, and the thermal overload relays have 5 specifications with a current range of 0.1A - 96A.
- Additionally, there are 3 specifications of CK3 - 25K, 50K, 65K capacitor circuit switching contactors derived from CK3 contactors and 1 specification of FSH - 4 contactor - type relays.
Contactors, Thermal Overload Relays and Contactor - Type Relays Comply with the Following Standards
- IEC 60947 - 1 and GB/T 14048.1 - 2012 General Rules for Low - voltage Switchgear and Controlgear
- IEC 60947 - 4 - 1 and GB/T 14048.4 - 2010 Low - voltage Switchgear and Controlgear - Electromechanical Contactors and Motor Starters (Including Motor Protectors)
- IEC 60947 - 5 - 1 and GB/T 14048.5 - 2008 Low - voltage Switchgear and Controlgear - Control Circuit Devices and Switching Elements - Electromechanical Control Circuit Devices
Normal Operating and Installation Conditions
- Ambient air temperature: - 5°C - + 55°C;
- Altitude of the installation site: Not exceeding 2000m;
- Relative humidity of the air at the installation site: Not exceeding 85% at the maximum temperature of + 40°C;
- Pollution level: Level 3;
- Can withstand mechanical vibration with a frequency of 10Hz - 55Hz and an acceleration of 15m/s²;
- Can withstand mechanical shock with an acceleration of 50m/s²;
- Installation category of the main circuit: Ⅲ, installation category of the auxiliary control circuit: Ⅱ;
- Installed with screws or on a 35mm guide rail, installation angle:
- Should be installed in a place without explosion hazard, no conductive dust, and no substances sufficient to corrode metal and damage insulation;
- Should be installed in a place without rain and snow infiltration;
- Storage conditions: Ambient air temperature: - 40°C - + 65°C.
