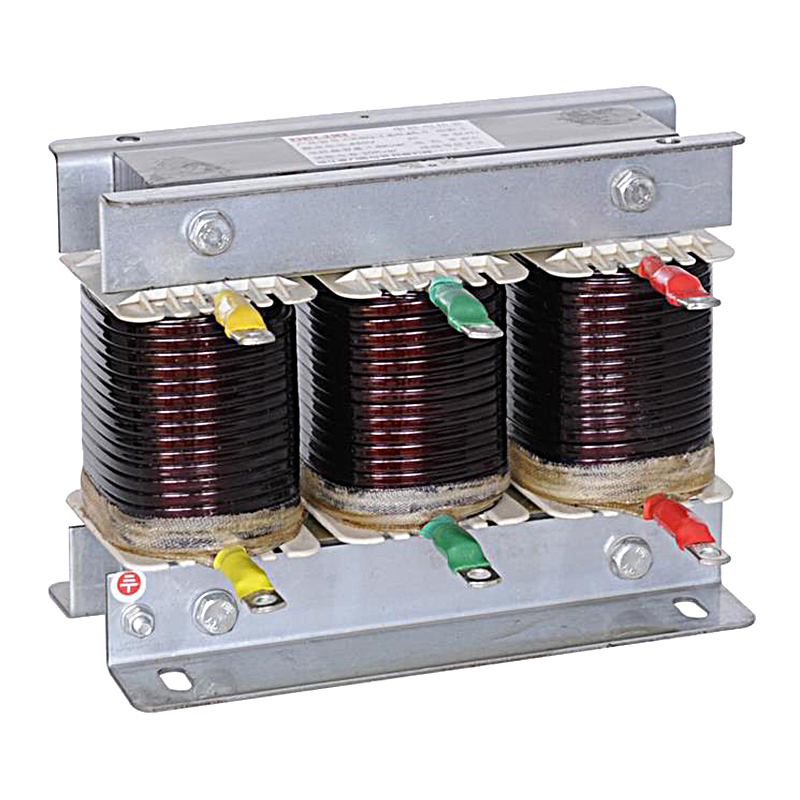

Delixi CKSG-2.45KVAR/0.45KV-7% Reactor
Brand:
Series:
CKSG
Reactance:
0.07
Number Of Phases:
Three-phase
Rated Current:
5.4A
Rated Voltage:
450VAC
Model:
CKSG-2.45KVAR/0.45KV-7%(aluminum wire)
Order Number:
CKSGL2P45G045H7
Description:
Delixi Reactor CKSG-2.45KVAR/0.45KV-7% (Aluminum Wire), Rated Voltage 450VAC, Rated Current 5.4A, Reactance 0.07, Three-phase
Product parameters
| Product attributes | Attribute value | Filter product attributes |
|---|---|---|
| Brand： | Delixi | |
| Series： | CKSG | |
| Reactance： | 0.07 | |
| Number Of Phases： | Three-phase | |
| Rated Current： | 5.4A | |
| Rated Voltage： | 450VAC |
Products with the same attribute : 0
Show details
Series Overview
Series Overview
Scope of Application
- When compensating capacitive reactive power, the CKSG series low - voltage shunt reactors are often affected by harmonic currents, closing inrush currents, and voltages during the operation process, resulting in capacitor damage and a decrease in the power factor. Therefore, it is necessary to add a shunt reactor in front of the capacitor to suppress and absorb harmonics, protect the capacitor, avoid the impact of harmonic voltage/current and impulse voltage/current, improve the power quality, increase the system power factor, and extend the service life of the capacitor.
Certification and Standards
- National standards: GB1094.1, GB/T1094.6, GB19212.21
Product Features
- The reactor adopts a three - phase three - limb core structure.
- The air gap of the iron core uses epoxy laminated glass sheet as an interval to ensure that the air gap of the reactor does not change during operation.
- The coil is tightly wound with enameled flat wire to ensure that the reactor coil does not vibrate during operation.
Working Conditions and Installation Conditions
- Ambient temperature: - 5 ~ + 40°C
- Relative humidity: ≤ 90% (while the monthly average temperature of the month is + 25°C)
- Altitude: ≤ 2000m
- Working environment
- a. There is no severe pollution that affects the insulation of the transformer and flammable & explosive media in the air.
- b. The installation site has no severe vibration and jolt.
- c. A place not affected by rain and snow.
- d. The surrounding environment should have good ventilation conditions. If installed in a cabinet, ventilation equipment should be added.
