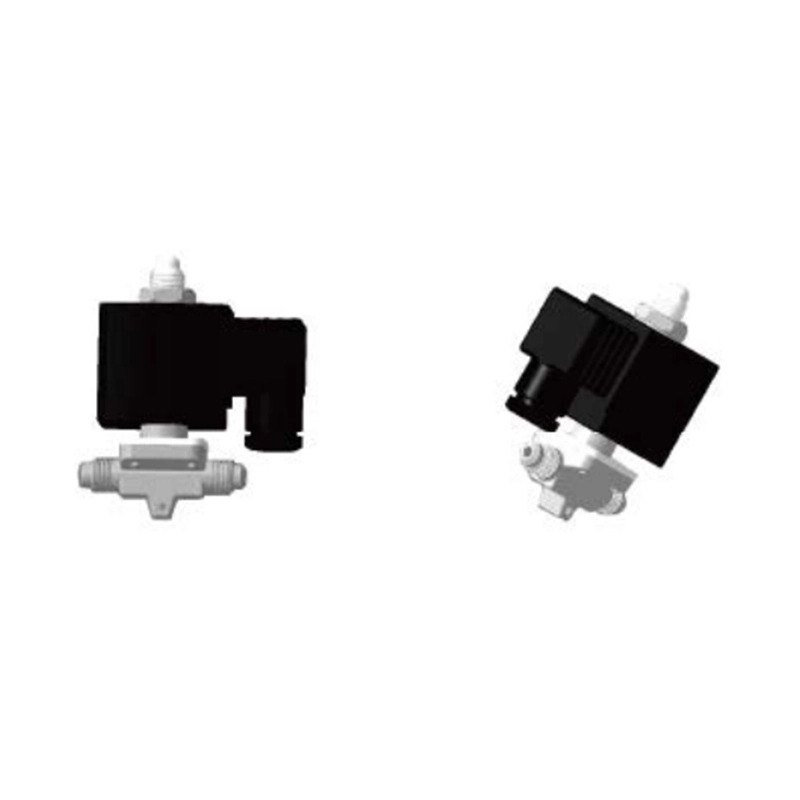

LDF2A02 Sanhua Low Internal Leakage NC Solenoid Valve

Name: LDF2A02 Sanhua Low Internal Leakage NC Solenoid Valve
SKU: Sanhua-LDF2A02-14

Brand:

Sanhua

Seat:

2 mm

Min. OPD:

0 kPa

Max. OPD[AC]:

3.1 MPa

Actuation:

Direct

Normal Position:

Kv:

0.12 m³/h

Series:

LDF

Model:

LDF2A02

Order Number:

Sanhua-LDF2A02-14

Description:

LDF2A02 Sanhua Low Internal Leakage NC Solenoid Valve, 0.12 m³/h, maximum operating pressure differential [AC]: 3.1 MPa, minimum operating pressure differential: 0 kPa

WhatsApp Inquire Now

Product parameters
Product Overview

Product parameters

Product attributes	Attribute value	Filter product attributes
Brand：	Sanhua
Seat：	2 mm
Min. OPD：	0 kPa
Max. OPD[AC]：	3.1 MPa
Actuation：	Direct
Normal Position：	NC
Kv：	0.12 m³/h
Series：	LDF

Products with the same attribute : 0

Show details

Product Overview

LDF series Solenoid Valves are direct operated or pilot operated Solenoid Valves, mainly used in refrigerant control

of various devices such as refrigerating and freezing systems, air conditioners and heat pumps.

FEATURES

• COILS: LOW ENERGY CONSUMPTION, RELIABLE

• Low Internal Leakage

• COMPACT DESIGN, EASY TO INSTALL

• SUITABLE FOR ICE MARKER AND ICE CREAM MARKER

GENERAL SPECIFICATIONS

• Applicable for all common HCFC and HFC refrigerants such as: R22, R134a, R404A, R410A (For oil system, please contact SANHUA)

• Medium temperature TS min./max.: -30°C/+120°C

• Ambient temperature min./max.: -30°C /+50°C

• Relative humidity: 0 to 95%RH

• Max. operating pressure PS: 4.2MPa

• Installation position:

- Liquid suction and discharge line

- Coil upwards, coil axis ±15° to tolerance versus vertical axis

- Flow direction corresponds to the arrow
